Optional Presentation Remote Control Kit (PR52KIT)

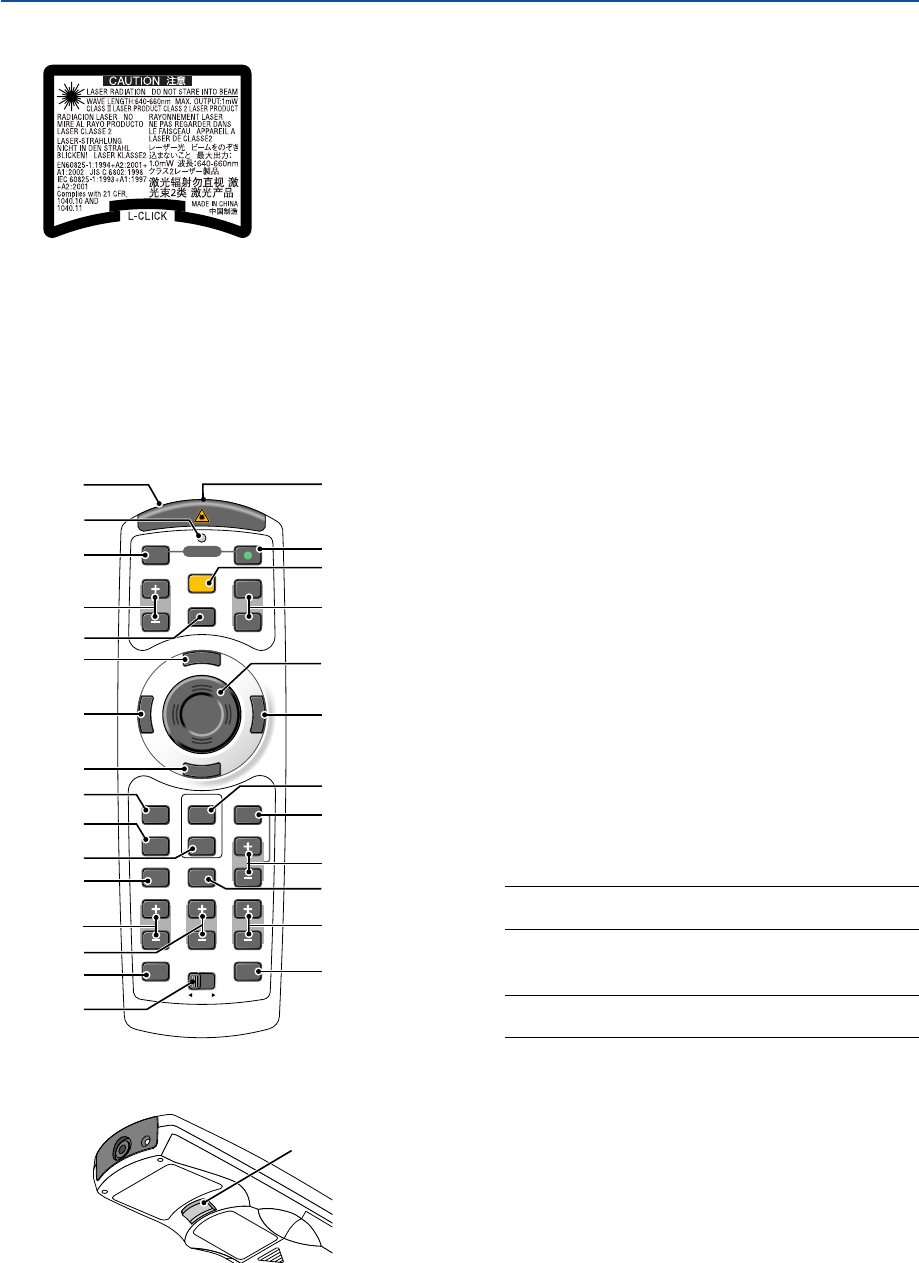

Part Names and Functions of the Remote Control
1. Infrared Transmitter/Laser Pointer
Tr ansmits an infrared signal when any button other
than LASER is pressed.
Direct the remote control toward the remote sensor
on the projector cabinet.
Beams a laser light when the Laser button is pressed.
CAUTION:
* Do not look into the laser pointer while it is on.
* Do not point the laser beam at a person.
2. Remote Jack
Not available on this model.
3. LED
Flashes when any button is pressed.
4. POWER ON Button
When the main power is on, you can use this button
to turn your projector on.
NOTE: To turn on the projector, press and hold the
POWER ON button for a minimum of two seconds.
5. POWER OFF Button
You can use this button to turn your projector off.
NOTE: To turn off the projector, press the POWER OFF
button twice.
6. MAGNIFY (+)(–) Buttons
Use these buttons to adjust the image size.
The image can be magnified about the center of the
screen up to 400%.
7. LASER Button
Press and hold this button to activate the laser pointer.
When lit, you can use the laser to draw your audience's
attention to a red dot that you can place on any ob-
ject.
VOLUME
3D REFORM
PJ OFF MOUSE
FOCUS
ZOOM
SLIDE
VIEWER
POINTER
LASER
UP
MAGNIFY
PAGE
OFF
POWER
ON
PIC-MUTE
DOWN
AUTO ADJ.
SOURCE
ASPECT
HELP
FREEZE
E
N
T
E
R
M
E
N
U
E
X
I
T
R
-
C
L
I
C
K
2
5
6
8
10
12
9
7
15
16
4
1
3
20
17
13
11
18
22
19
25
27
29
28
23
26
21
24
14
The PR52KIT is an optional remote control kit for operating your NEC projector and performing your computer mouse
operations.
Package List
• RD-408E remote control unit....... 1 • AAA batteries ................... 2
• Mouse receiver............................ 1 • User's manual .................. 1
