ProSafe 802.11g Wireless VPN Firewall FVG318 Reference Manual
3-16 Configuring Wireless Connectivity
v1.0, September 2007
3. Select the WPA and WPA2 radio box and then select RADIUS from the WPA with: pull-
down menu in the Wireless Security Type section. The RADIUS settings fields in the Radius
Server Settings section will be highlighted.
4. Enter the Radius Server Settings.
• Primary Server Name/IP Address: This field is required. Enter the name or IP address
of the primary Radius Server on your LAN.
• Radius Port: Enter the port number used for connecting to the Radius Server.
• Shared Key: Enter the desired value for the Shared Key. This must match the value used
on the Radius server.
5. Click Apply to save your settings.

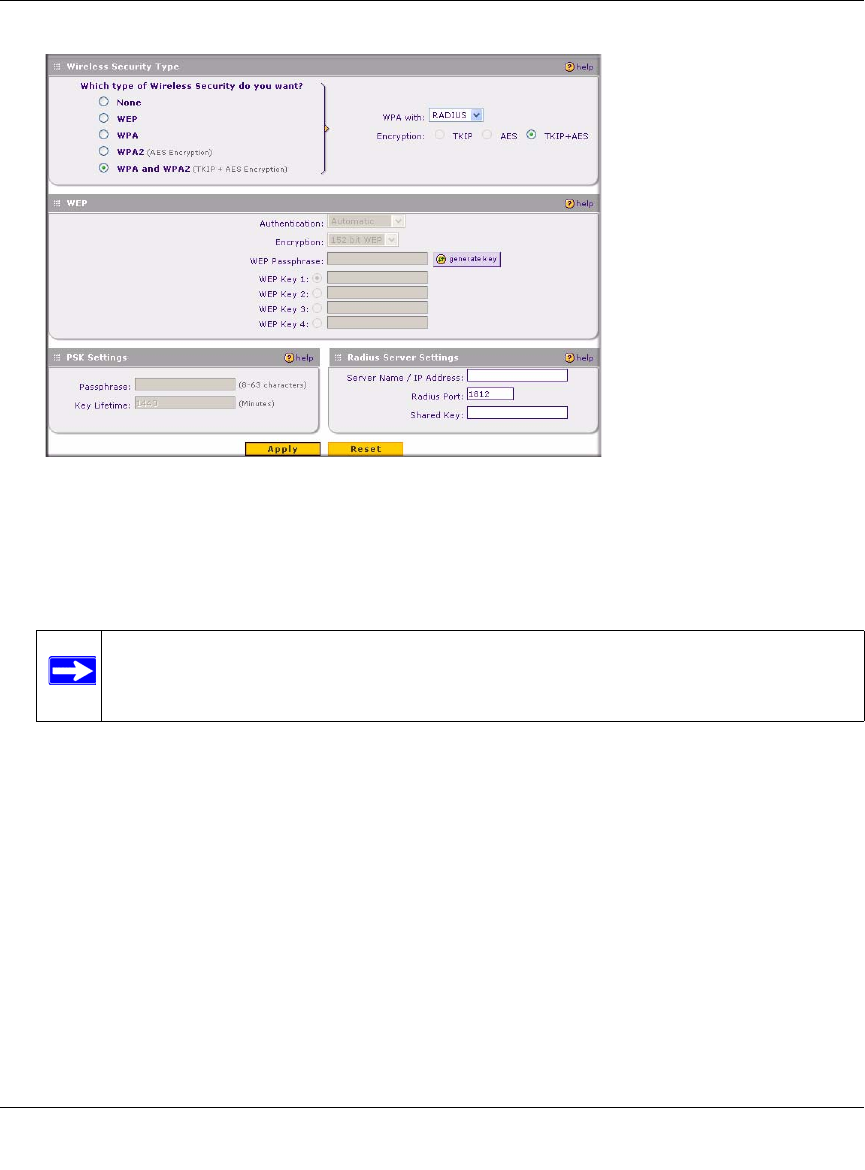

Figure 3-8
Note: The Encryption choice will be TKIP+AES by default. For WPA/WPA2 with
RADIUS, TKIP+AES is used.
