Removing a Small Form Factor Pluggable
(SFP) GBIC
This section lists the steps for removing a GBIC.
To remove a GBIC:
1 Disconnect the network fiber cable from the SFP GBIC
connector.
2 Depending on your SFP GBIC model, either pull the LC
extraction tab located in the front of the SFP GBIC (below
right) with your thumb and forefinger, or press the button on
the botton of the MT-RJ SFP GBIC (below left).

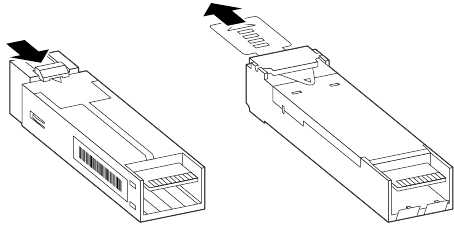

Figure 8 Removing a SFP GBIC (Bottom view)
3
Slide the SFP GBIC out of the Gigabit Ethernet module slot.
4 If the SFP GBIC does not slide easily from the module slot,
use a gentle side-to-side rocking motion while firmly pulling
the SFP GBIC from the slot.
10518FA
LC SFP GBIC
MT-RJ
SFP GBIC
