Opticon
OPR 2001
Specifications Manual
29

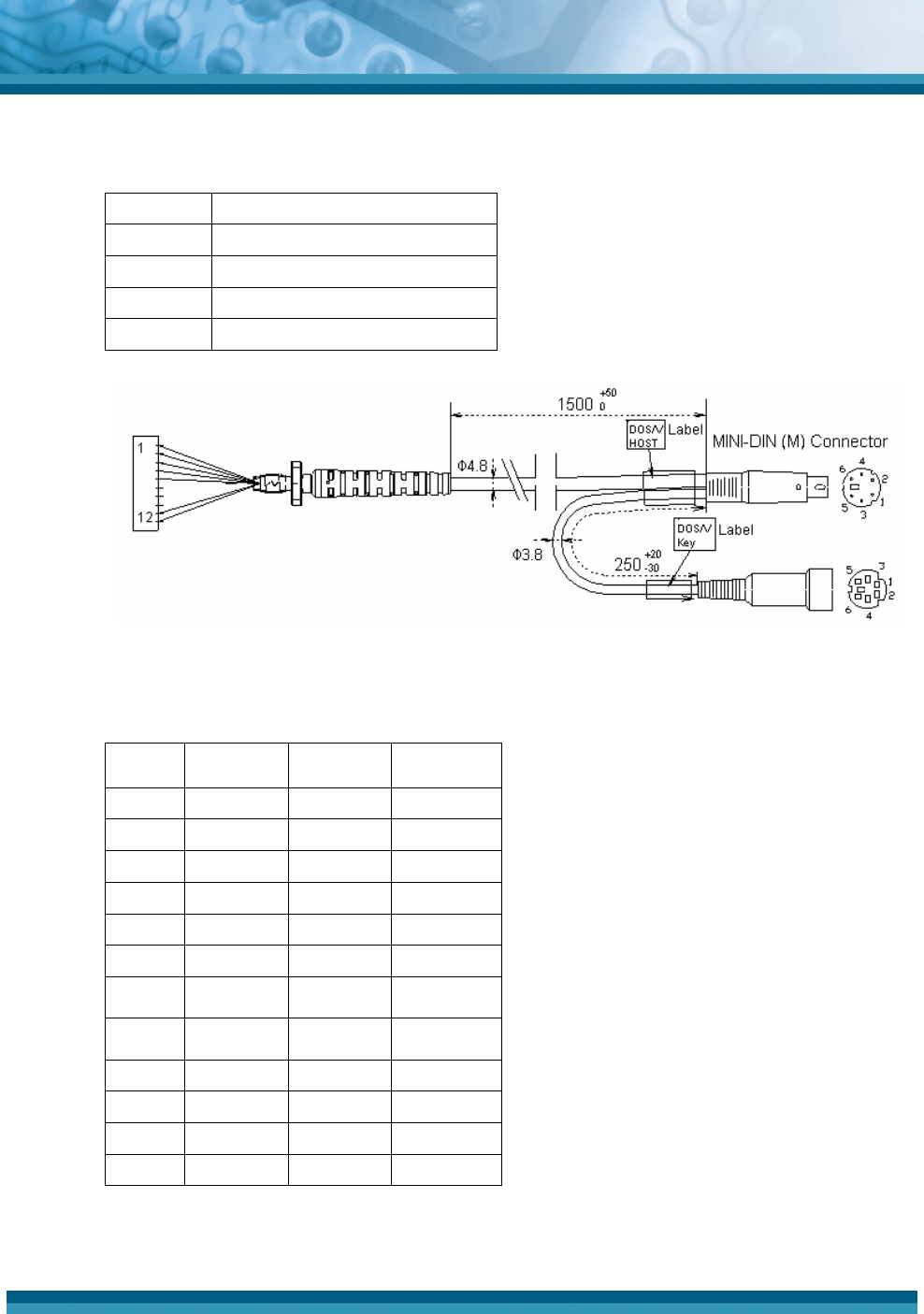

9.3. Wedge Cable
(Standard specification)
Type: Y cable
Diameter: Φ4.8 ±0.5 mm
Length: 1500 +50, -0 mm
Cores: 6 insulated wires, 1 conductive wire
Weight: Approximately 50 g
Figure 24: Wedge cable
9.4. Connector Specification (Scanner Side)
CN1 (12-pin)
Pin No RS-232C USB Wedge
1 GND GND GND
2 RXD --- ---
3 TXD --- ---
4 CTS --- ---
5 RTS --- ---
6 NC --- ---
7 NC
－DATA
KEY_CLK
8 NC
＋DATA
KEY_DATA
9 NC --- CPU_CLK
10 NC --- CPU_DATA
11 VCC VCC VCC
12 FG (shield) FG (shield) FG (shield)
