User Controls
Your LCD monitor allows you to easily adjust the characteristics of the image being displayed.
All of these adjustments are made using the control buttons on the front of the monitor. While
you use these buttons to adjust the controls, an on-screen menu shows you their numeric
values as they change.
* 17" : SyncMaster 170MP

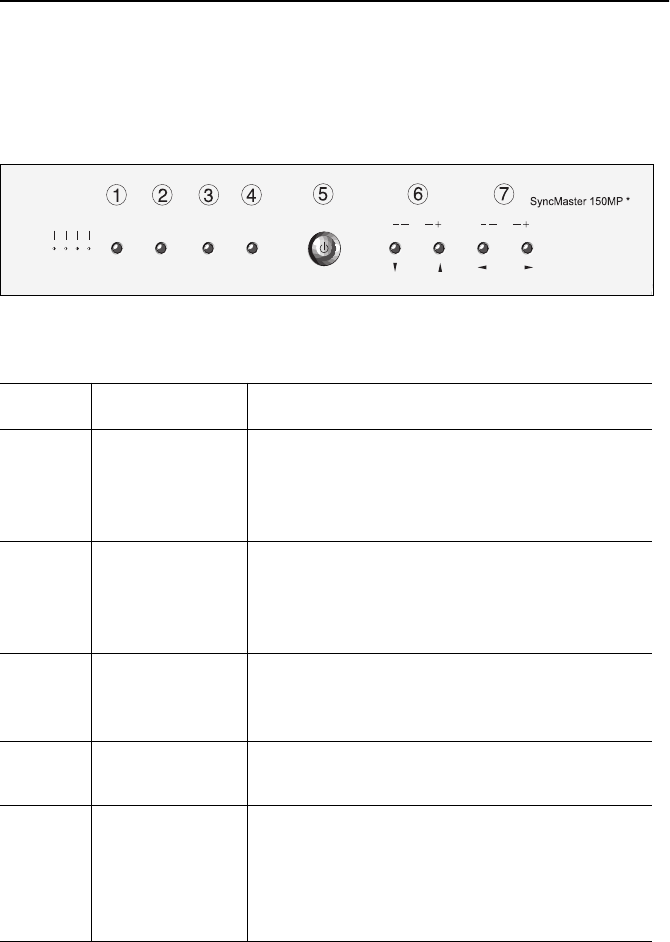

Figure 6. User control locations
No. Name Description
1 Source
Selects Video source.
Four source indicator LEDs on the left of the
control button indicate currently active Video
source.
2 PIP
Activates PIP(Picture-in-Picture) window
directly.
PIP to Fullscreen video.
PIP off.
3
Exit
Exits from menus and sub-menus.
Exits from the OSD system.
Turns the PIP off.
4 Menu
Opens the OSD and selects the highlighted
function.
5 Power
Turns ON/OFF the monitor.
Indicates the status of the monitor.
-Green : Normal Operation.
-Amber : Power Saving Mode or Disconnected
Signal Cable.
CHMenuExitPIP
Source
TVV2V1PC
VOL
