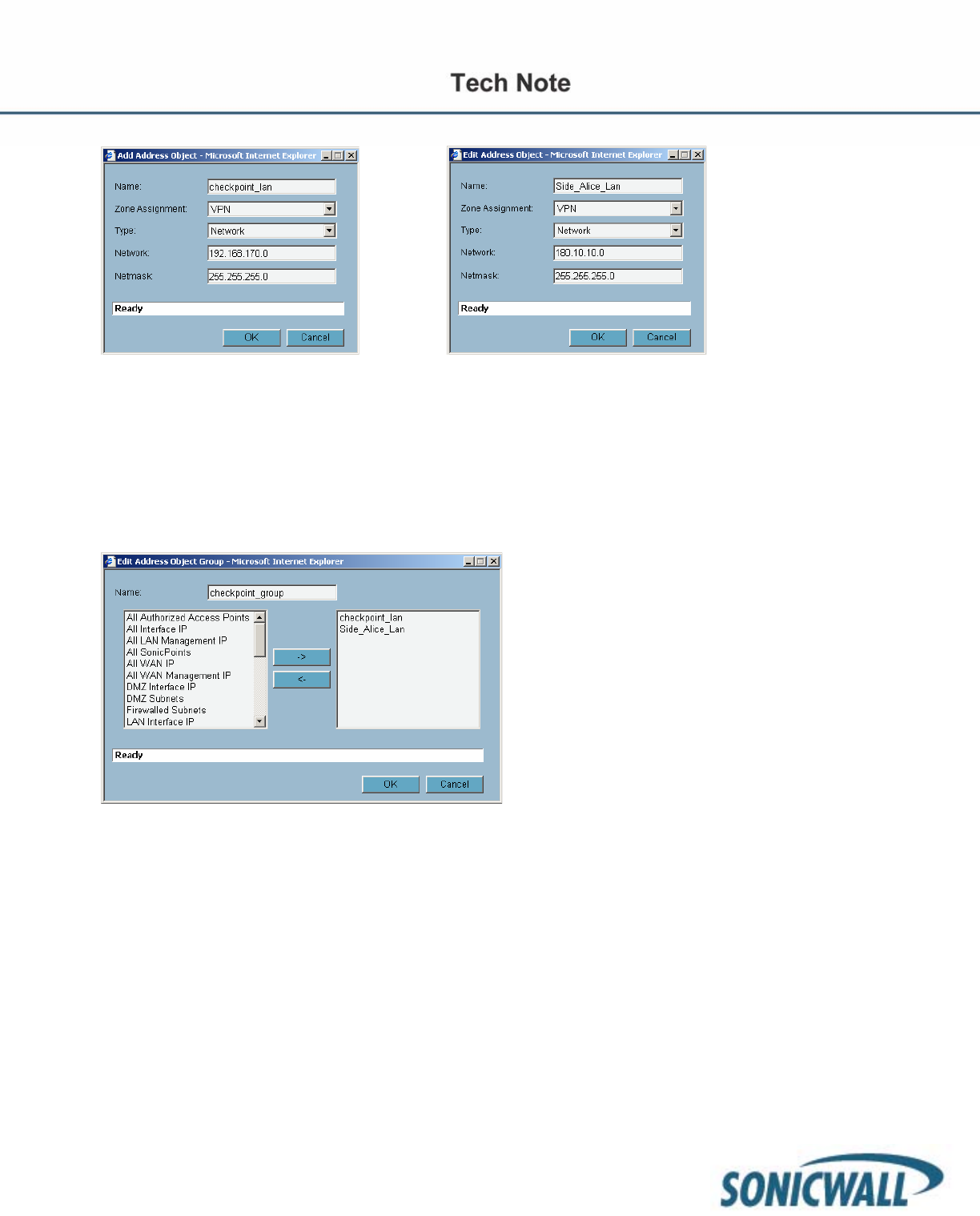

Name: checkpoint_lan Name: Side_Alice_lan
Zone Assignment: VPN Zone Assignment: VPN
Type: Network Type: Network
Network: 192.168.170.0 Network: 180.10.10.0
Netmask: 255.255.255.0 Netmask: 255.255.255.0
Click ‘OK’ to finish. Click ‘OK’ to finish.
Next create an address object group for the two checkpoint address objects. On the ‘Network > Address Objects’ page in
the ‘Address Groups’ section, click on ‘Add Group…’ to create the address group for the objects. The ‘Name;" is
"checkpoint_group"
Select the "checkpoint_lan" object and ‘Ctrl’ or ‘Shift’ click to select the "Side_Alice_lan" object. Click the right arrow
button to add both objects to the group.
From the navigation bar on the left, click on ‘VPN’, this will bring up the ‘VPN > Settings’ page. In the ‘VPN Global
Settings’ section, make sure the ‘Enable VPN’ radio button is selected. In the ‘VPN Policies’ section, click on ‘Add’ to
create the new VPN policy for the Check Point FireWall-1.
