42
KP-43T75C/53SV75C/61SV75C
RM-Y906RM-Y906
RM-Y906

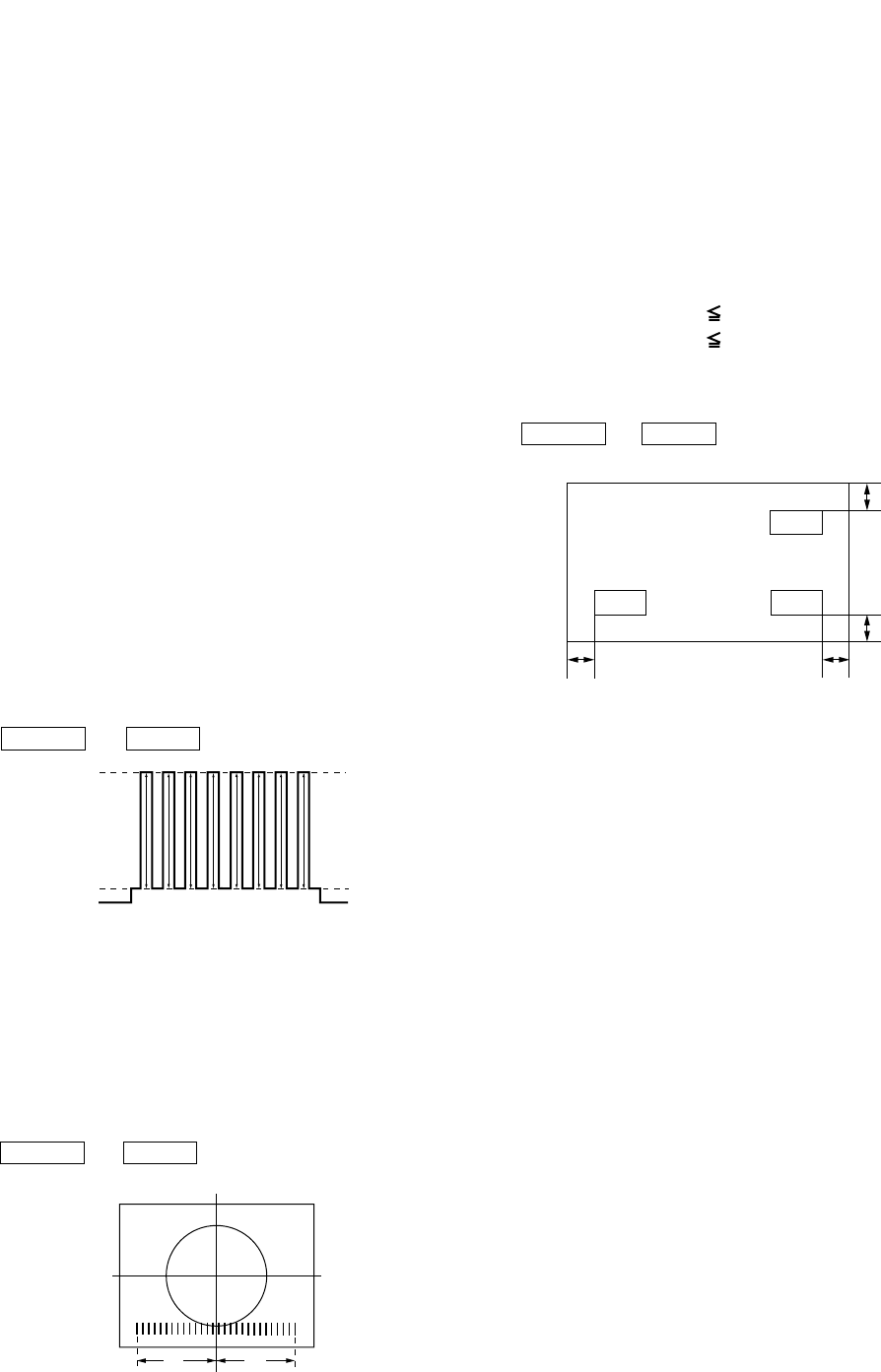

5-7. PIP POSITION ADJUSTMENT
(PI-PIPH, PIPV)
1. Set the PIP mode.
2. Receive the monoscope signal on the main/sub picture.
3. Check the sub picture position.
X1-X2
0.25sq
X1-X2
0.25sq
4. If necessary set to service mode and adjust "PIPH", "PIPV".
5. Write the data into memory.
MUTING n ENTER
Fig. 5-7
5-5. SUB-HUE , SUB-COLOR AND MAIN
CONTRAST ADJUSTMENT (MC-MYDR,
MSHU, MSCL, SC-SSHU, SSCL)
1. Receive the color-bar signal.
2. Mode : Personal 1 or 2.
PICTURE : maximum
COLOR : center
BRIGHTNESS : center
TRINITONE : medium
SERVICE DATA MC-MYDR : 22
SERVICE DATA MC-MSHU : 31
SERVICE DATA MC-MSCL : 31
SERVICE DATA SC-SSHU : 31
SERVICE DATA SC-SSCL : 31
3. Set to service mode and set to P & P model .
4. Connect an oscilloscope between pin 5 of CN204 (A board)
connecter and ground.
5. Select MC-MYDR, and adjust them to have VB1 = VB5
in the waveform levels.
6. Select MC-MSCL, SC-SSCL and adjust so that the wave
form shows VB1=VB4 and VB5=VB8.
7. Select MC-MSHU, SC-SSHU and adjust so that the wave
form shows VB2=VB3 and VB6=VB7.
8. Write the data into memory.
MUTING n ENTER
VB1 VB2 VB3 VB4 VB5 VB6 VB7 VB8
Fig. 5-5
X1 = X2
X1
X2
5-6. BAR DISPLAY POSITION ADJUSTMENT
(OP-DISP)
1. Receive the monoscope signal.
2. Set to service mode.
3. Push PICTURE + . (Bar is displayed)
4. Select OP-DISP , and adjust so that the bar is as shown in
the figure.
5. Write the data into memory.
MUTING n ENTER
Fig. 5-6
Y2
X2X1
Y1
