TTP-248M Bar Code Printer
Service Manual

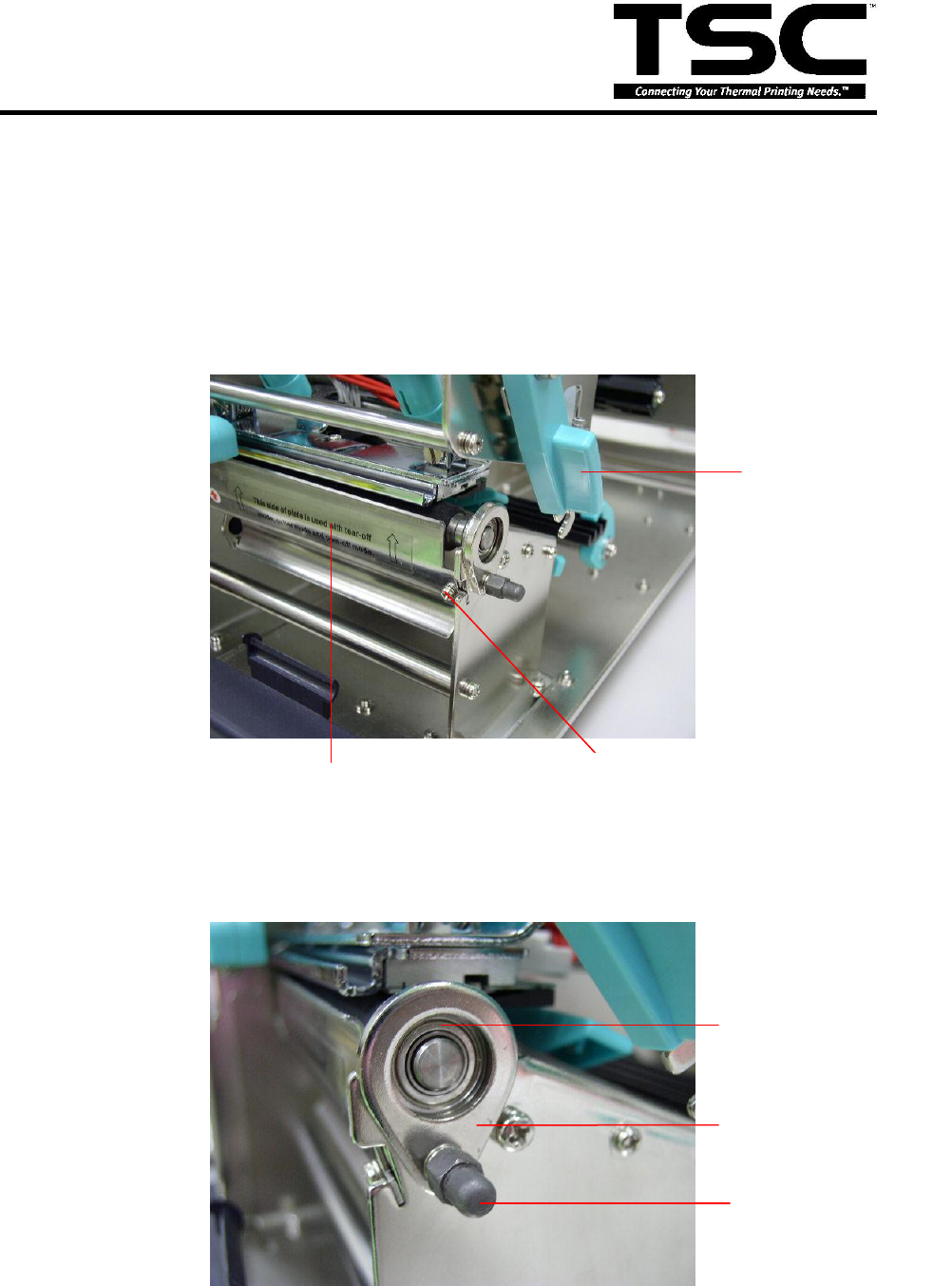

4.8 Replacing Platen
1. Refer to 4.1 to remove the Top Right and Left Side Covers.
2. Release the Print Head Lift Lever.
3. Remove the screw and the Stripper/Rewind Plate.
4. Remove the Tab Core, Support Plate and Right Shaft Bearing.
5. Remove the two screws on the Gear.
Stripper/Rewind Plate
Support Plate
Tab Core
Right Shaft Bearing
Screw
Print Head Lift
Lever
