2 Unwinder / Winder Operation
100kg Unwinder / Winder User Guide 13
6. Set the roll media on the Right Unwinder Spindle and tighten the Right Spindle Locking Handle.
3
2
1

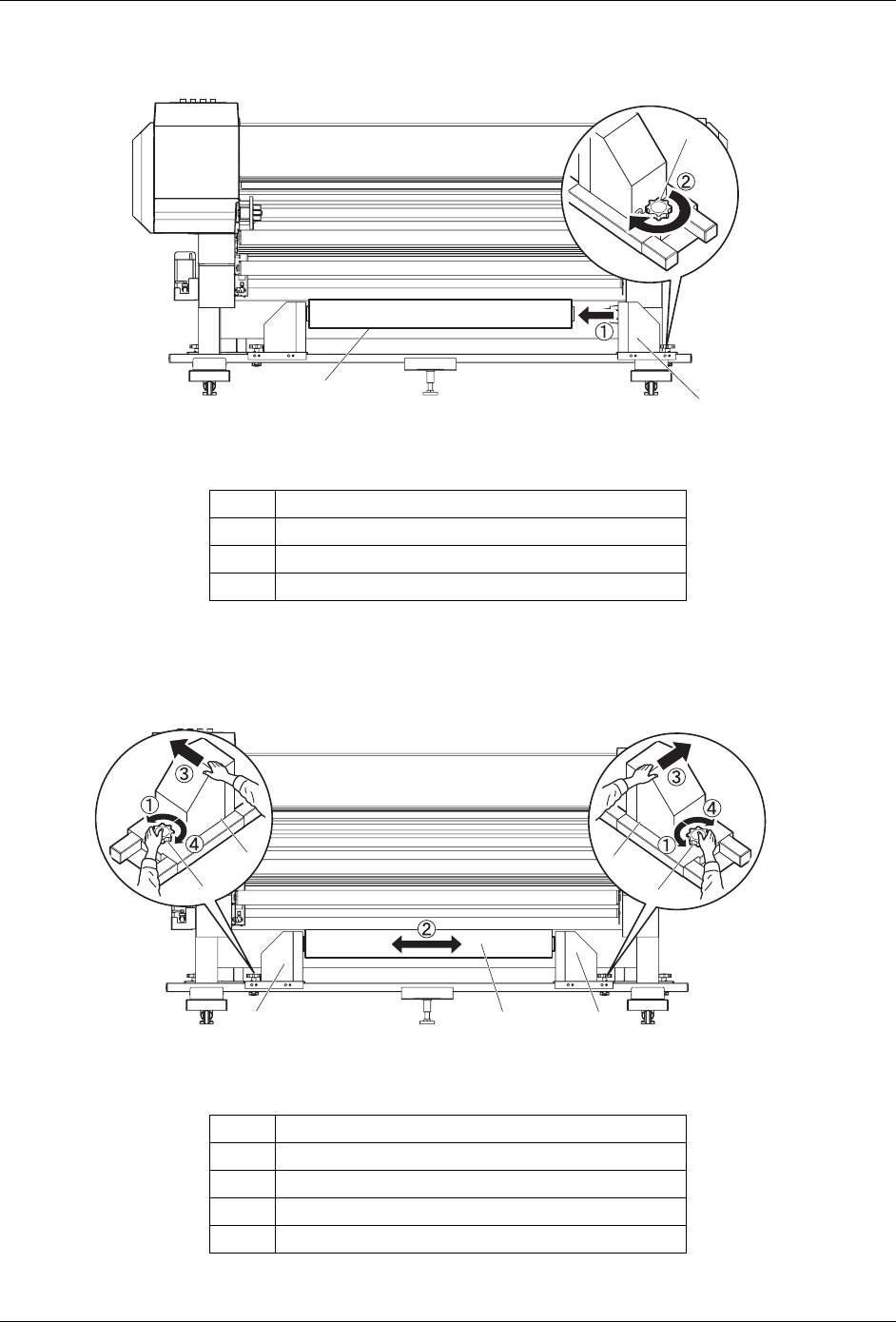

Figure 16. Install Roll Media
No. Part name
1 Right Unwinder Spindle
2 Roll Media
3 Right Spindle Locking Handle
7. Loosen the Left and Right Unwinder Spindle Locking Handles and move the roll media to the
center of the rail so that the media is aligned with the center of the printer. Tighten the Left and Right
Unwinder Spindle Locking Handles.
1
2
3
4
2
4
1
Figure 17. Install Roll Media
No. Part name
1 Right Unwinder Spindle
2 Left Unwinder Spindle
3 Roll Paper
4 Spindle Locking Handles
