6287 ULTRA Users ManualPage 2-6
6287 ULTRA Connection to Printer/Plotter

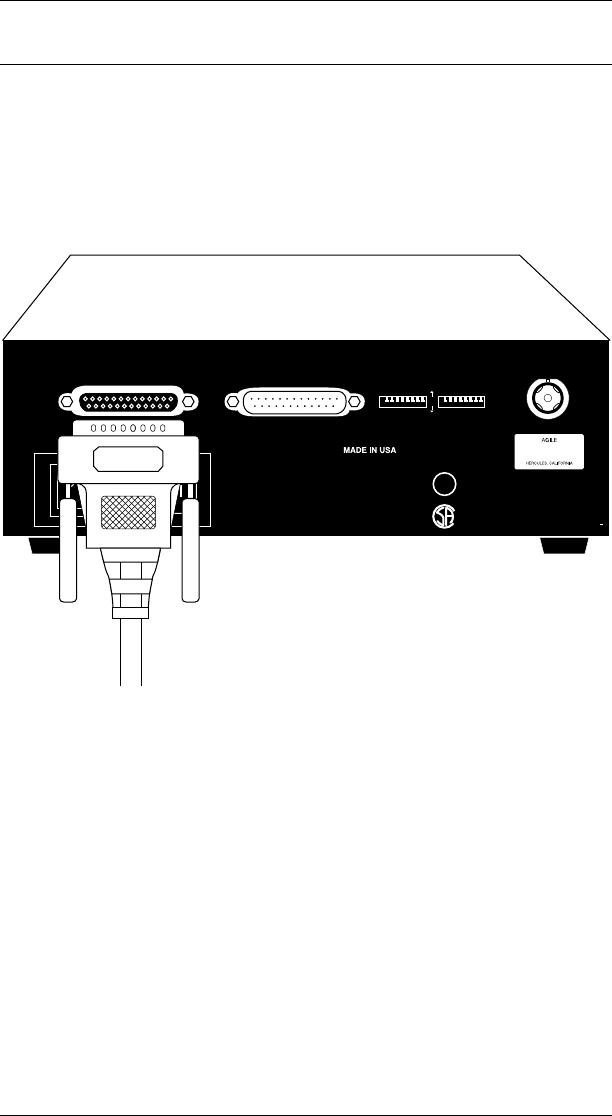

Insert the DEVICE end of the AGILE printer cable into the connector on
the rear of the printer. Then connect the IC+/ULTRA end of the AGILE
printer cable to the output port of the ULTRA. Secure the cable to the
printer using the clips (parallel) or screws (serial) provided. The FCC
requires all printer interface cables to be properly shielded.
OUTPUT
SERIAL AND PARALLEL
ALTERNATE HOST INPUT
SERIAL AND PARALLEL
117 VAC
.5A
50/60 Hz
35W
FUSE
250V-1.0A
SLO BLO
CONTROLLER
COAX
RG 62 A/U
MODEL 6287 ULTRA
S/N 00000
This equipment complies with the requirements
in Part 15 of FCC Rules for a Class A computing
device. Operation of this equipment in a
residential area may cause unacceptable
interference to radio and TV reception
requiring the operator to take whatever steps
are necessary to correct the interference.
LR 69521 E.D.P. EQUIPMENT
47T8
Y
CAUTION-FOR CONTINUED PROTECTION
AGAINST FIRE, REPLACE ONLY WITH
SAME TYPE AND RATING OF FUSE
LISTED
U
L
®
®
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
OFF
ON
AB
