6287 ULTRA Users ManualPage 2-8
6287 ULTRA Connection to AC Outlet

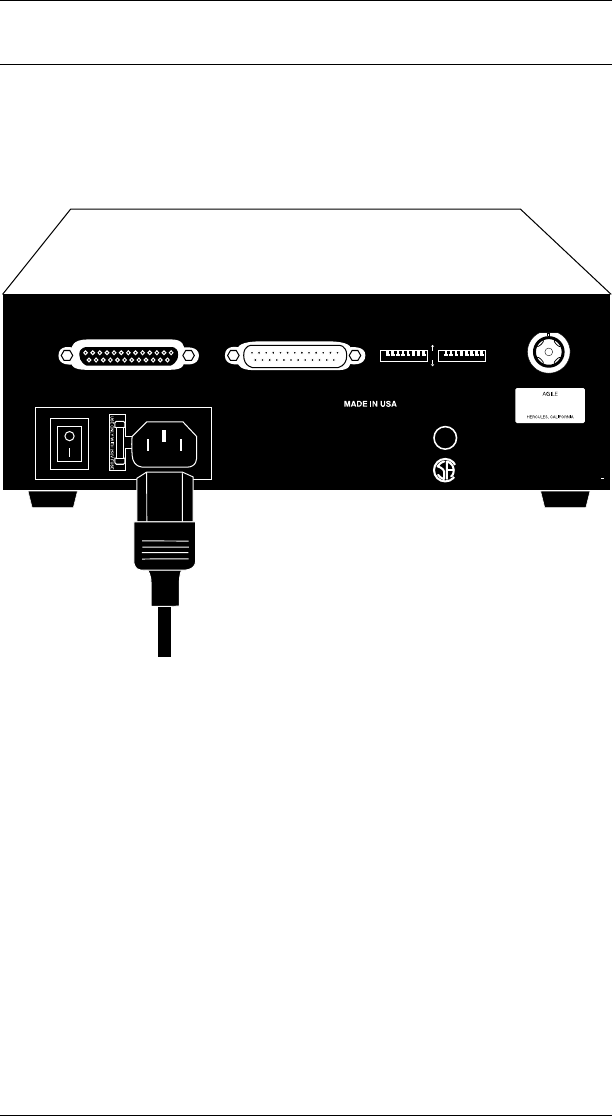

Ensure that the power switch on the ULTRA is set in the OFF (up) position.
Insert the device end of the power cord into the rear of the ULTRA. Insert
themale end of the power cord into a properly grounded wall receptacle.
OUTPUT
SERIAL AND PARALLEL
ALTERNATE HOST INPUT
SERIAL AND PARALLEL
117 VAC
.5A
50/60 Hz
35W
FUSE
250V-1.0A
SLO BLO
CONTROLLER
COAX
RG 62 A/U
MODEL 6287 ULTRA
S/N 00000
