12D-Link DAP-1522 User Manual
Section 2 - Installation
Depending on how you want to use your DAP-1522 will determine which mode you use. This section will help you gure out
which setting works with your setup.

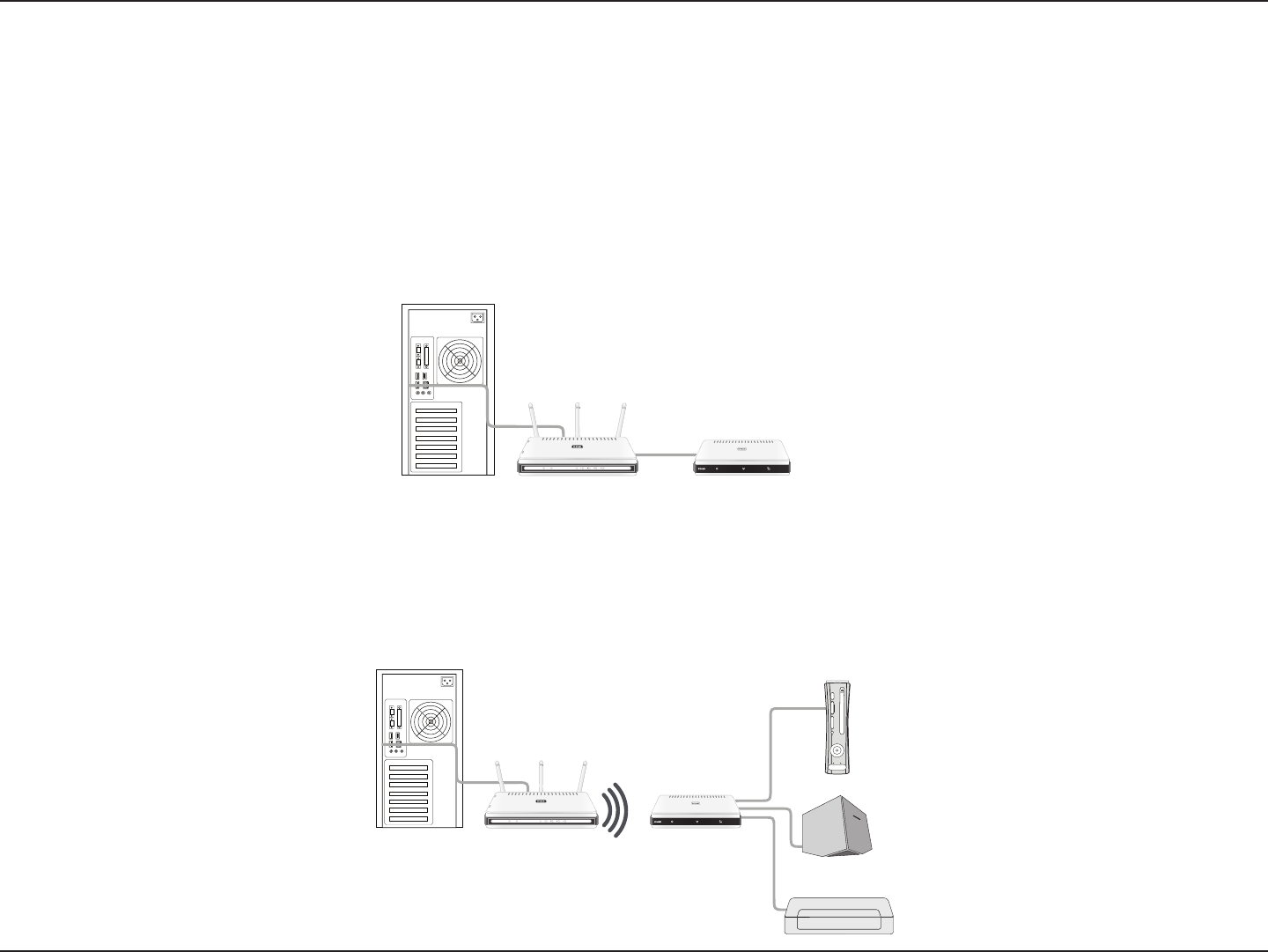

AP Mode
If you already have a wired or wireless router, and want to add an access point to connect your wireless clients to your network,
you will need to move the switch on the back panel of the DAP-1522 to “AP2.4GHz” (for 2.4GHz) or “AP 5GHz” (for 5GHz).
Bridge Mode
If you want to wirelessly connect multiple Ethernet enabled devices such as game consoles, media players, or network attached
storage devices you will need to move the switch on the back panel of the DAP-1522 to “Bridge”.
AP/Bridge Mode
DAP-1522
WIRELESS DIR-615
DAP-1522
WIRELESS DIR-615
Media Player
Game Console
Network DVR
Xtreme N Duo
Wireless Bridge/AP
DAP-1522
Xtreme N
Gigabit Router
Wired PC
DAP-1522
WIRELESS DIR-615
DAP-1522
WIRELESS DIR-615
Wired PC Xtreme N
Gigabit Router
Xtreme N Duo
Wireless Bridge/AP
DAP-1522
