Component Function
11 Exit Exits the menu.
12 Volume Adjusts the sound up and down.
13 Set (Check) Press to select a menu item or save changes.
Identifying Rear Components

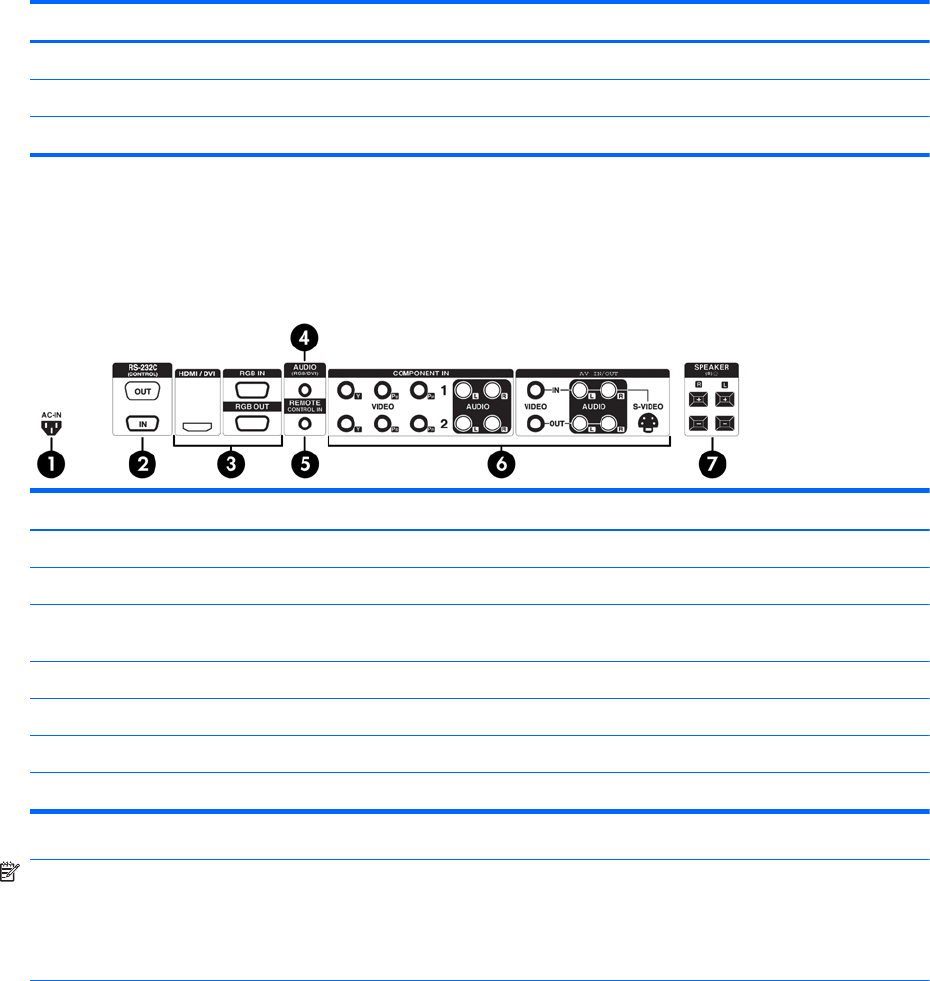

Figure 3-15 Rear Components (The product image in the user guide could be different from the
actual image)
Component Function
1 Power connector Connects the AC power cord to the monitor
2 RS-232C serial ports Connects to RS-232 devices
3 RGB PC, HDMI/DVI Ports HDMI supports High Definition input and HDCP (High-bandwidth Digital Content
Protection). Some devices require HDCP in order to display HD signals
4 PC Sound Jack Connects the audio cable to the line-out jack of the PC sound card
5 Wired Remote Control Port Connects a wired remote control to the monitor
6 AV Ports Connects the video and audio equipment to the monitor
7 Speaker Ports Connects the speakers to the monitor
NOTE: The line-out terminal is used to connect to the speaker, including a built-in amplifier (AMP).
Be sure the connecting terminal of the PC sound card is checked before connecting. If the Audio Out
of the PC sound card has only Speaker Out, reduce the PC volume. If the Audio Out of the PC sound
card supports both Speaker Out and Line Out, convert to Line Out using the card jumper of the
program. Refer to the manual that comes with the sound card for additional instructions.
