Flexible Arm Installation - LCD2070NX, LCD2070VX
This LCD monitor is designed for use with a flexible arm. To mount the
monitor to a flexible arm:
1. Follow the instructions on how to Remove Monitor Stand for Mounting
to remove the stand.
2. Using the 4 screws from the stand removal and attach the arm to the
monitor (Figure F.1).
NOTE: The LCD monitor should only be used with an approved arm
(e.g. GS mark). To meet the safety requirements, the monitor must be
mounted to an arm which guaranties the necessary stability under
consideration of the weight of the monitor.
Thickness of Bracket (Arm)
2.0~3.2mm
100mm
100mm
Weight of LCD assembly:
LCD2070NX: 5.7 kg MAX
LCD2070VX: 5.8 kg MAX
4 Screws (4M)
(Max Depth: 14 mm)

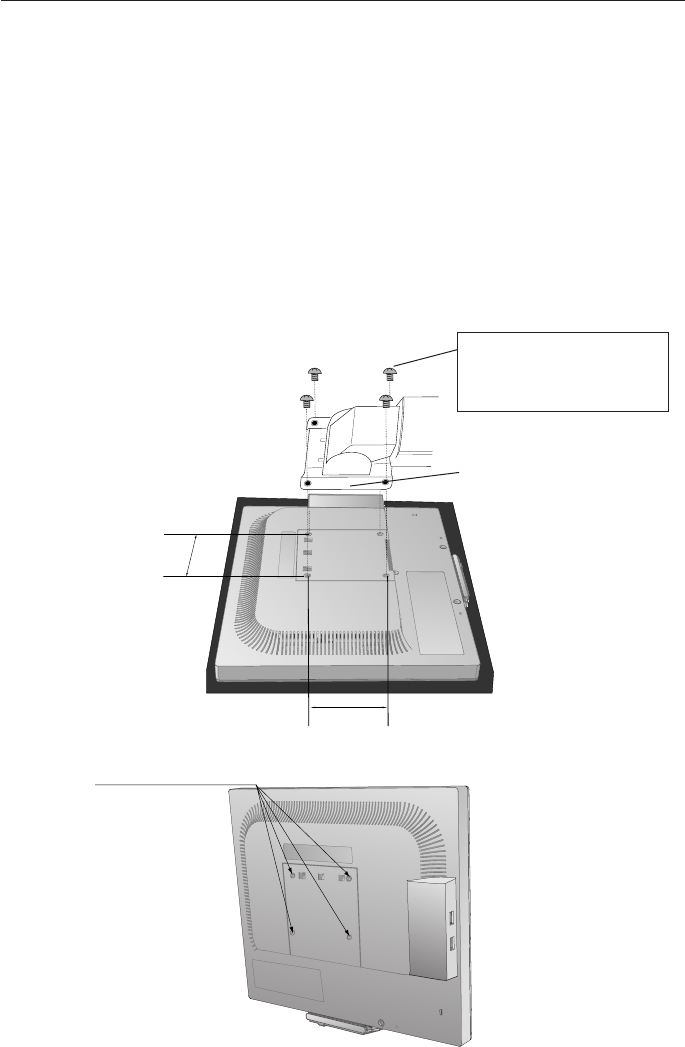

Figure F.1
NOTE: Please use the screws
(4pcs) that were removed from
stand when mounting flexible
arm.
(Pictured: LCD2070NX)
