- 11 -
4.3.1 Status and Counters
From the Switch main menu screen (see Figure 4-3), highlight Status and counters and press enter.
The Status and Counters sub-screen in Figure 4-4 appears.

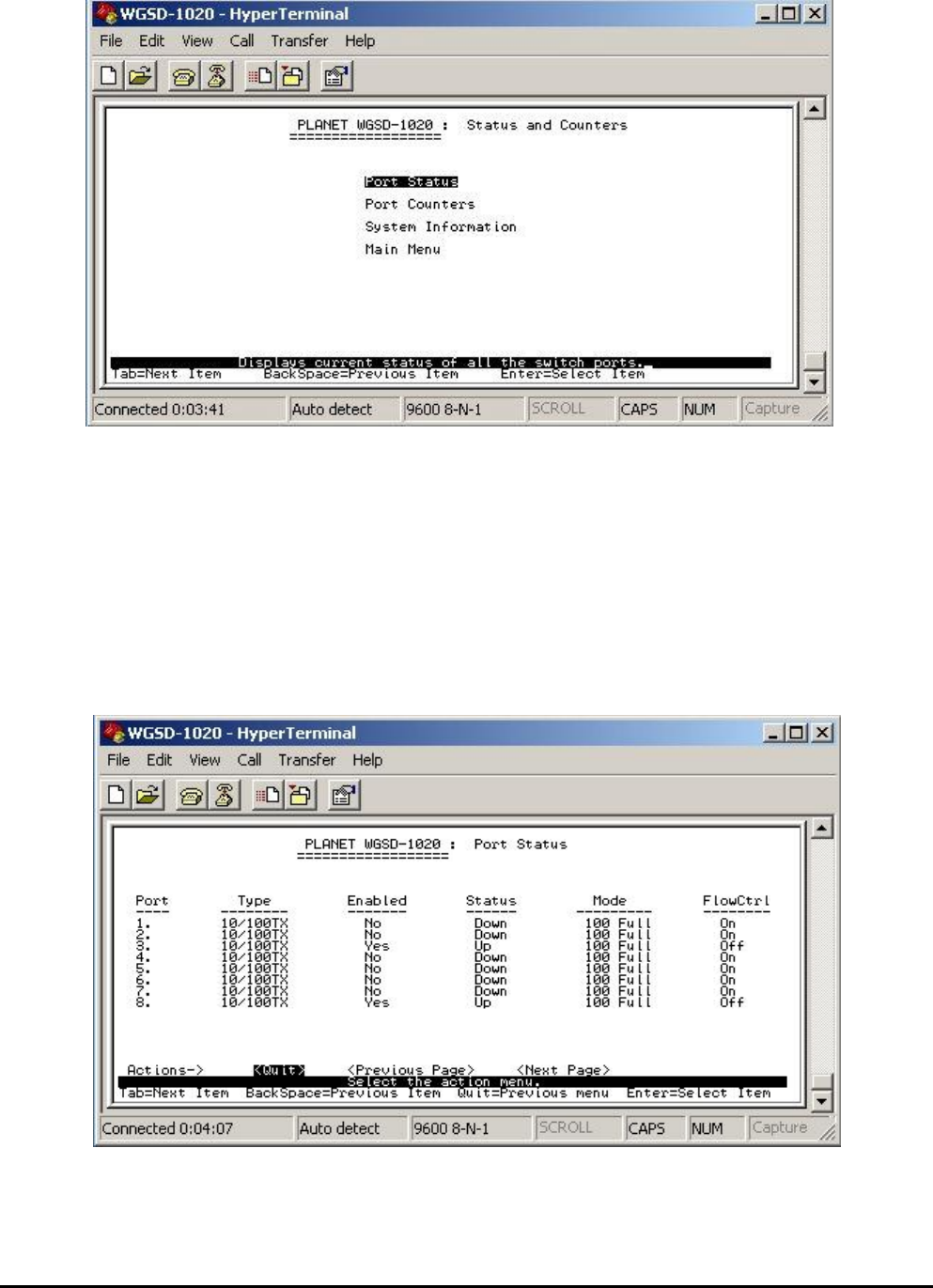

Figure 4-4 Status and Counters sub-screen
This sub-menu contains four items:
Port Status: Please refer to chapter 4.3.1.1.
Port Counters: Please refer to chapter 4.3.1.2
System Information: Please refer to chapter 4.3.1.3
Main Menu: return to main menu.
4.3.1.1 Port Status
Display the status of each port on WGSD-1020.
Figure 4-5 Port Status screen
