- 27 -
4.3.2.7 Misc Configuration
From the Switch Static Configuration sub-screen (see Figure 4-9), highlight Misc Configuration
and press enter. The Misc Configuration sub-screen in Figure 4-35 appears.

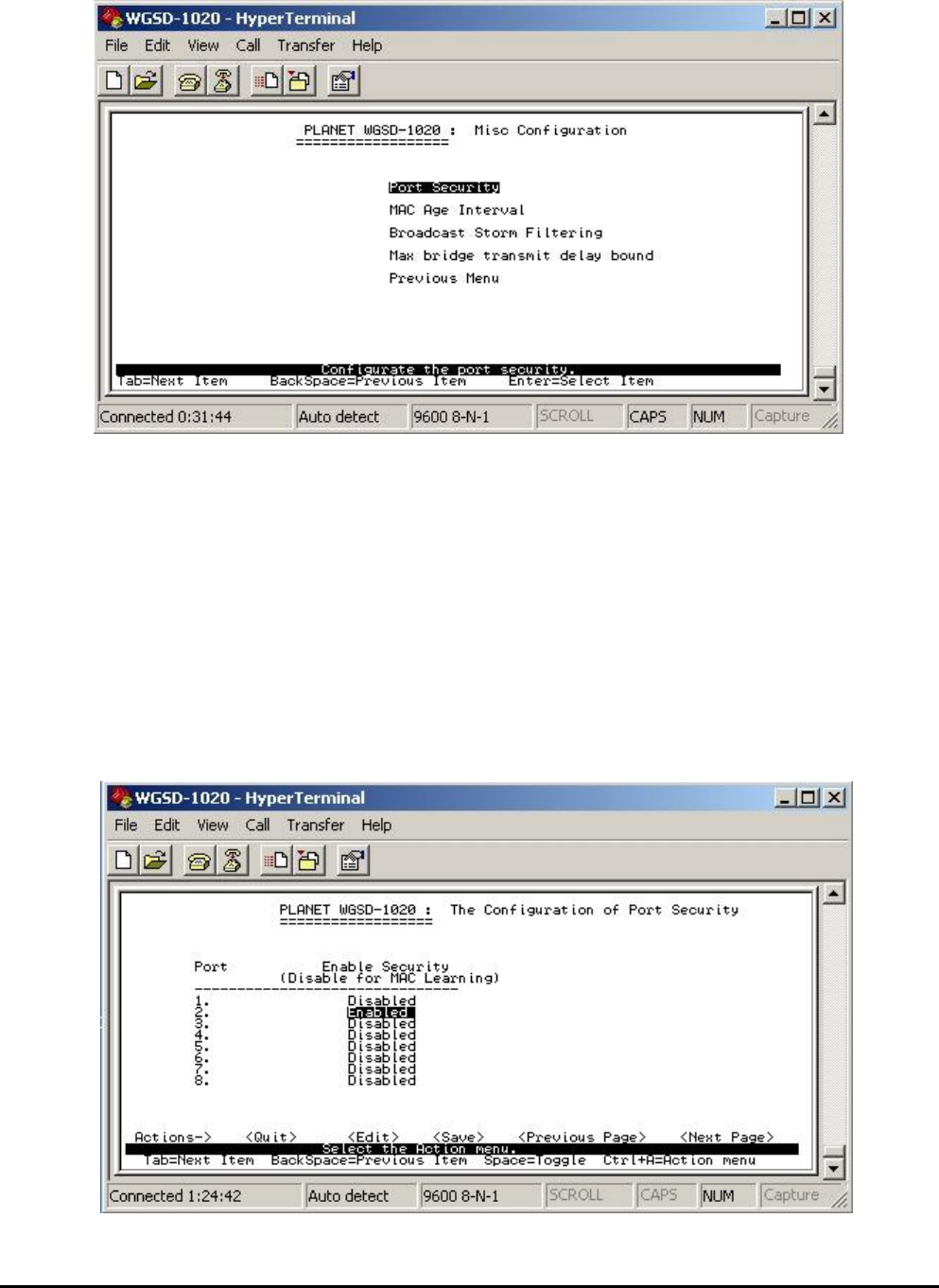

Figure 4-35 Misc Configuration screen
This sub-menu contains five items:
Port Security: please refer to chapter 3.3.2.7.1
MAC Age Interval: please refer to chapter 3.3.2.7.2
Broadcast Storm Filtering: please refer to chapter 3.3.2.7.3
Max bridge transmits delay bound: please refer to chapter 3.3.2.7.4
Previous Menu: return to previous menu
4.3.2.7.1 Port Security
Provide disable or enable security of each port. The screen in Figure 3-36 appears.
Figure 4-36 Port Security Configuration screen
