5.4.5.3 State Activity
Allow setting the LACP State Activity of each port.

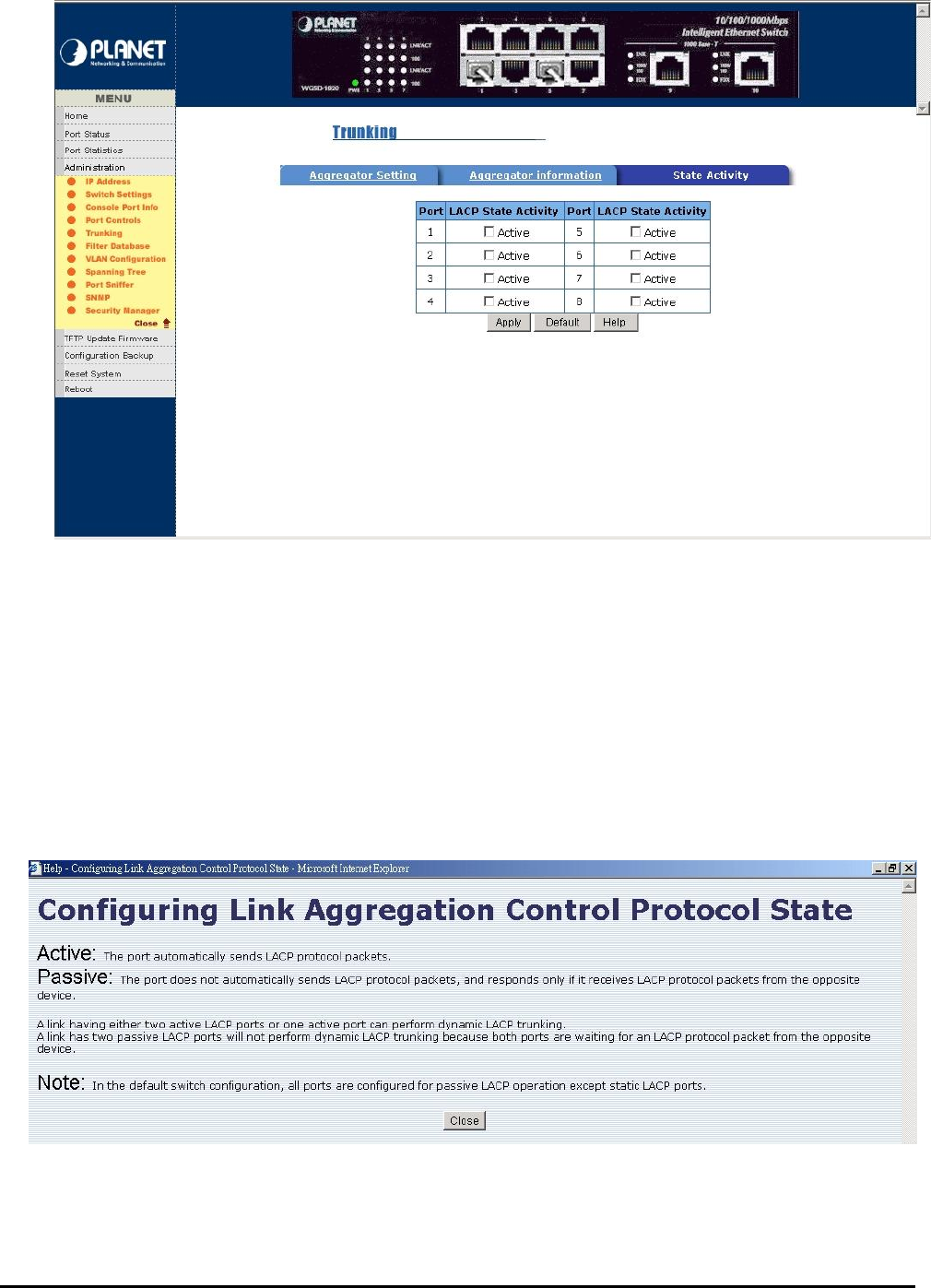

Figure 5-18 WGSD-1020 State Activity Web Page screen
Please check the detail description of parameters as below:
Active( enable ): the port automatically sends LACP protocol packets.
Passive ( not enable Active): the port does not automatically sends LACP protocol packets and only
respond when it receives LACP protocol packets from the opposite device.
Note: ＊ A link having either two active LACP ports or one active port can perform dynamic LACP
trunking. A link has two passive LACP ports will not perform dynamic LACP trunking, because
both ports are waiting for LACP protocol packets from the opposite device.
＊If the switch is active LACP’s actor, when you are select trunking port, the active status will be
created automatically.
You can click” Help” button; the following screen in Figure 5-19 appears.
Figure 5-19 WGSD-1020 Trunk Help Web Page screen
Click “Close” to close this screen.
