Shuttle Slim-PC
Barebone
XH61V
– Front
and
Back
Panel

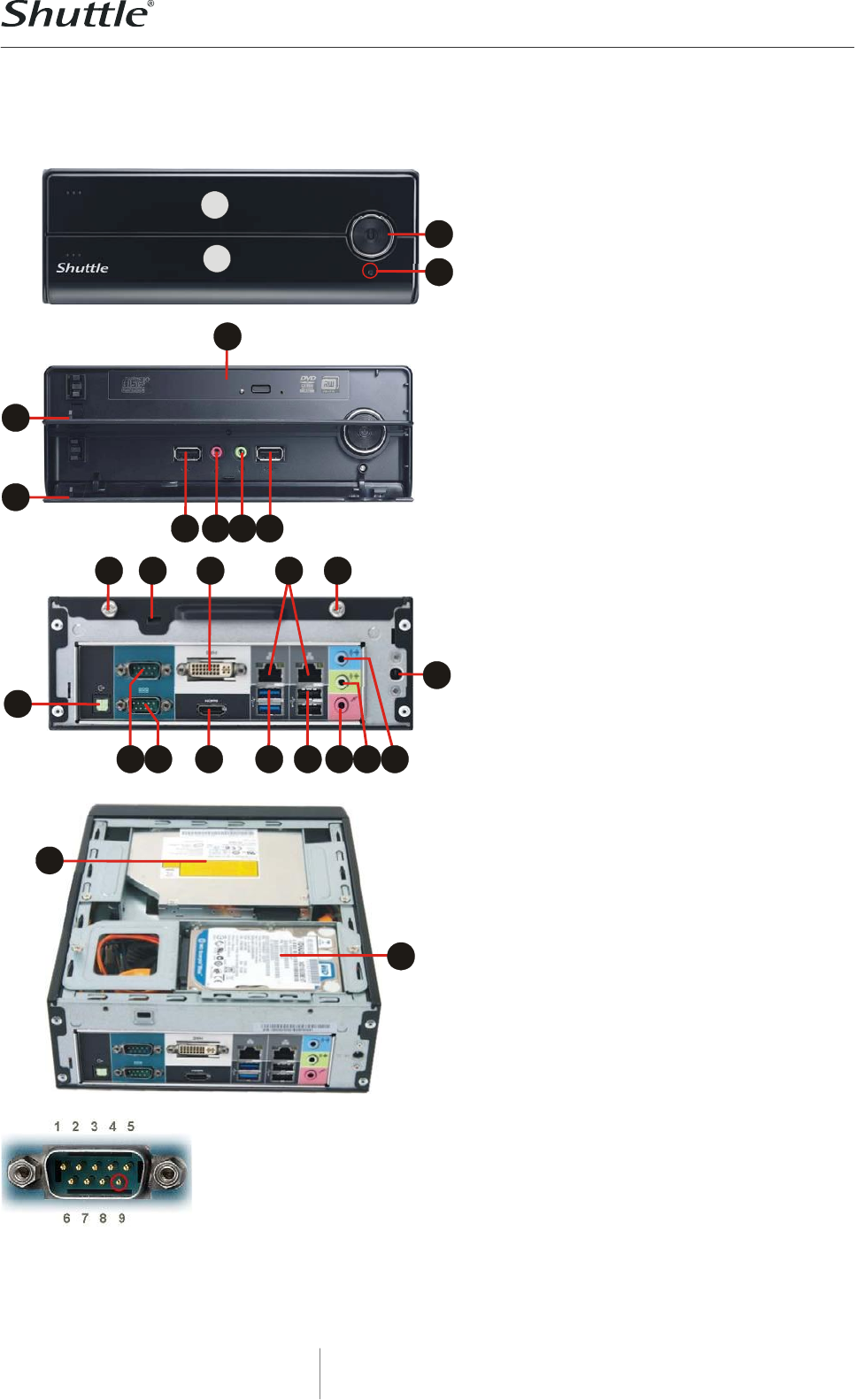

Front Panel
4
1 Power Button
1
2 Power LED
5
3 Bay for optical Slim DVD drive
2
(the optical drive is not included)
4 Front door for DVD drive
5 Front door for I/O connectors
3
6 Two bays for 2.5“ hard disk drives or
SSDs
7 2x USB 2.0 ports
4
8 Microphone input
9 Headphone output
5
10 11
12
7 8 9 7
15 17 10
Back Panel
10 Two thumbscrews
11 Hole for Kensington Lock
12 Digital audio: S/PDIF (optical)
13 RS232 serial interface (COM port)
14 RS232 / RS422 / RS485 ser. (COM)
23
15 DVI-I – digital video output
(supports VGA with optional adapter)
16 HDMI – digital video/audio output
17 Dual Gigabit network (RJ45)
13 14 16
36
18 19 20 21 22
6
18 2x USB 3.0
19 2x USB 2.0
20 Microphone input
21 Headphone / line-out
22 Audio line-in
23 Connector for the power adapter
Note: the storage drives (hard disk and
optical slimline drive) are not included in
the delivery of XH61V. For a second 2.5”
drive you will need another SATA cable.
COM port Pin 9 Configuration
Pin 9 is a multi-functional signal. Based on Jumper 3 configuration on the
mainboard, it can be configured as Ring Indicator (RI) or external power supply
with either 5V or 12V voltage level (each COM port separately).
