Product
Specification
Page
4
|
8
June
2012
Mena Computers
Wageningselaan 46=D
3903 LA Veenendaal
|
The Netherlands
Tel
.
+31 (0) 318 518720
sales@shuttleshop.nl
w w w . s h u t t l e s h o p . n l
which also
support both
5 or 12V. The lower COM port also
supports
the
RS422
and
RS485
standard.
2x expansion slots for Mini-PCI-Express cards
XH61V
features
two
expansion
slots for Mini-PCIe
cards. One
is
a
half
size slot
dedicated
for
an optional
W
i
reless
LAN
adapter.
The
secon
d
has full size format
and
not only
features a
PCIe
interface,
but
also
mSATA
(M
in
i
Serial
ATA),
supporting
the
new generation
of Solid
State
Drives
(SSD)
in
a compact
Mini PCIe
card
f
orm
factor.

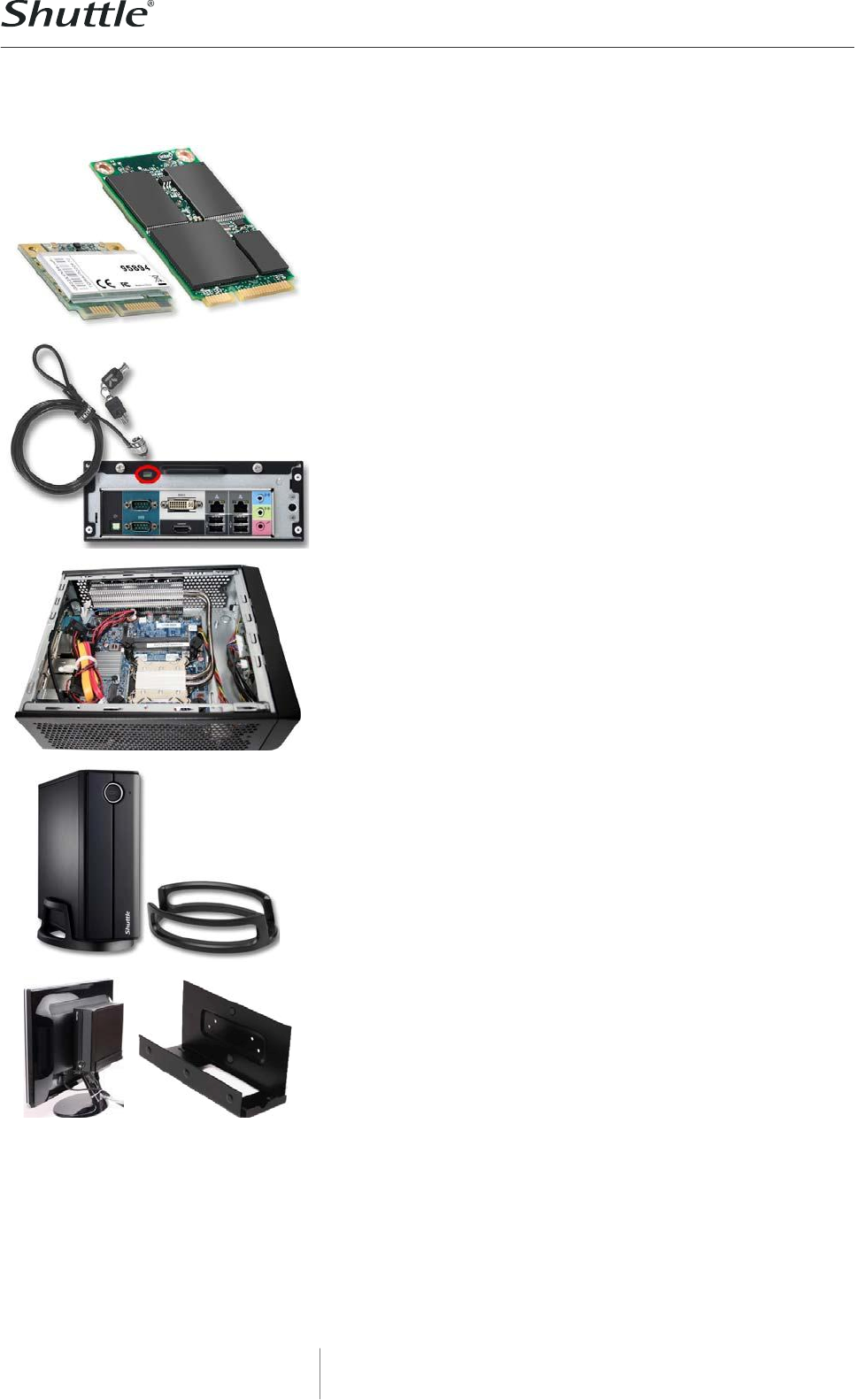

Photos: half
siz
e
WLAN
card
(left)
and
mSATA SSD
card
(right).
Kensington Lock
This
is
a
small,
metal-reinforced
hole as part of
an
an
ti-th
e
ft
sy
stem.
(The
lock-and-cable are
not in
cluded)
Heat pipe cooling
XH61V
features a
highly
effic
i
ent
heat pipe cooling.
A
heatpipe
is
a
hollow
tube containing a heat
transfer
liqu
i
d.
As the liquid
evaporates,
it
carries heat
to the
cool end, where
it
condenses and
then returns
to
the hot
end. Heatpipes
thus
have a much higher effective
thermal
conductivity than
solid
materials.
Pl
ease
keep
the vent holes
clear
of
obstructions.
Optional Stand for vertical operation (PS01)
XH61V
can be used
for
horizontal operation
by
default.
W
i
th
the
optional stand accessory
(PS01), it
can
also
be placed
in
vertical
position
.
Optional VESA mount (PV02)
Its
optional
VE
SA75/100
wallmount
allows
it
to
be
i
n
stalle
d
on to walls
o
r
j
u
st
affixed on the rear side of
a
mon
i
tor
which is
particularly
in
terestin
g
for the industry
segment, company buildings and public
institutio
ns.
