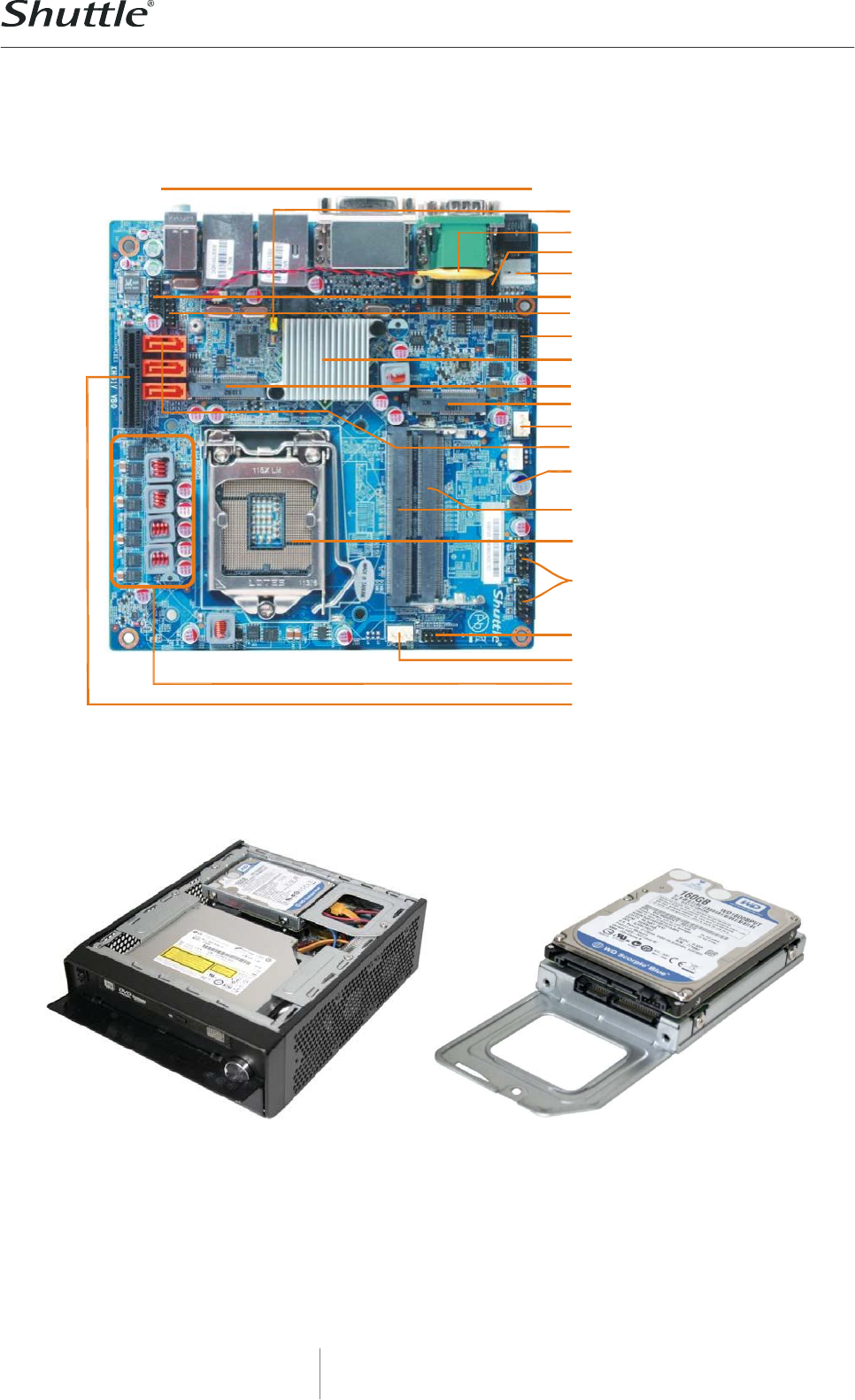

Shuttle Slim-PC
Barebone
XH61V
Mainboard
Backpanel
connectors
Clear CMOS
jumper
CMOS
battery
COM port voltage
jumper
19VDC power
connector
Audio header
(front)
USB 2.0 header
(front)
TPM/LPC
header
Intel H61
chipset
Mini PCIe slot (half
size)
Mini PCIe slot (full
size)
System fan
connector
3x Ser. ATA
connectors
Solid
capacitors
2x 204pin
SO-DIMMs
support DDR3
memory
LGA1155 CPU
socket
Two USB 2.0
header
Front panel
connector
power button &
LED
CPU fan
connector
Voltage
regulator
PCI-Express X4
slot
(cannot be
used)
Supports three dr
ives
XH61V
supports one optical
drive in 5.25
slim-lin
e
format
and
two 2.5 drives
(e.g. hard
disk
and
SSD).
For
the
second
2.5
d
r
ive
you
will
need an additional
SATA
cable and
moun
ti
ng
screws.
