Replacement Procedures
4.15 LCD unit / FL inverter
CAUTION: When replacing a LCD, it is required that SVP parameter is set. Update with
the latest EC/KBC as described in Appendix H “EC/KBC Rewrite
Procedures”.
Removing the LCD unit / FL inverter
The following describes the procedure of removing the LCD unit and FL inverter
Remove Screw rubber cover
1. Remove the following screws securing the display mask
M2.5×5.0 BIND screw X11
2. Insert your finger between the edge of the display mask and the LCD, and remove the
display mask while releasing the latches of display mask.

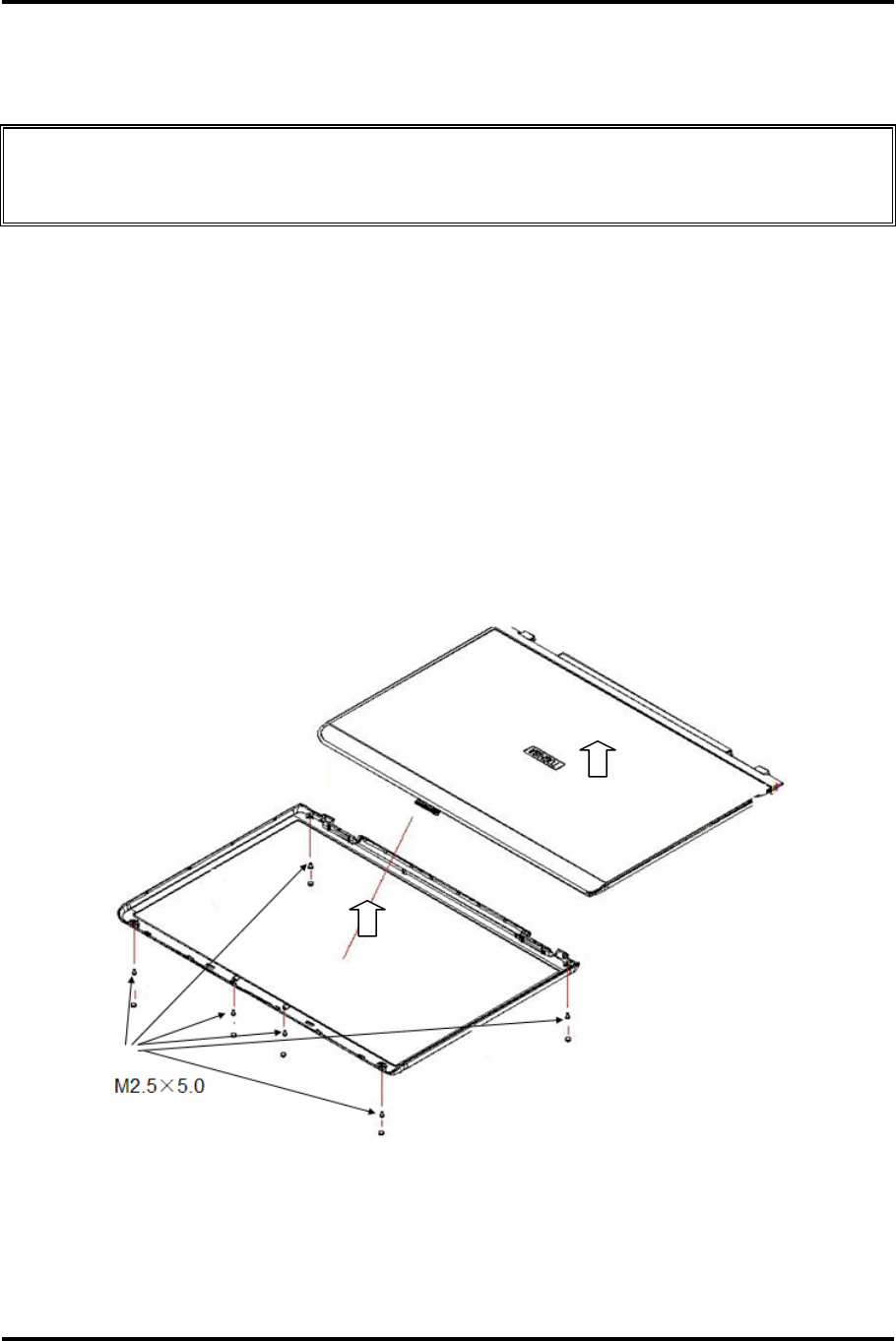

Figure 4-28 Remove the display mask
3. Pull out one insulator and peel off the other one adhered to the FL inverter.
