2 Unwinder / Winder Operation
100kg Unwinder / Winder User Guide 7
2.1.3 Unwinder Control Panel
The Unwinder Control Panel is used to set the operating mode and to display the status of the
Unwinder.
2
5
3
1
4

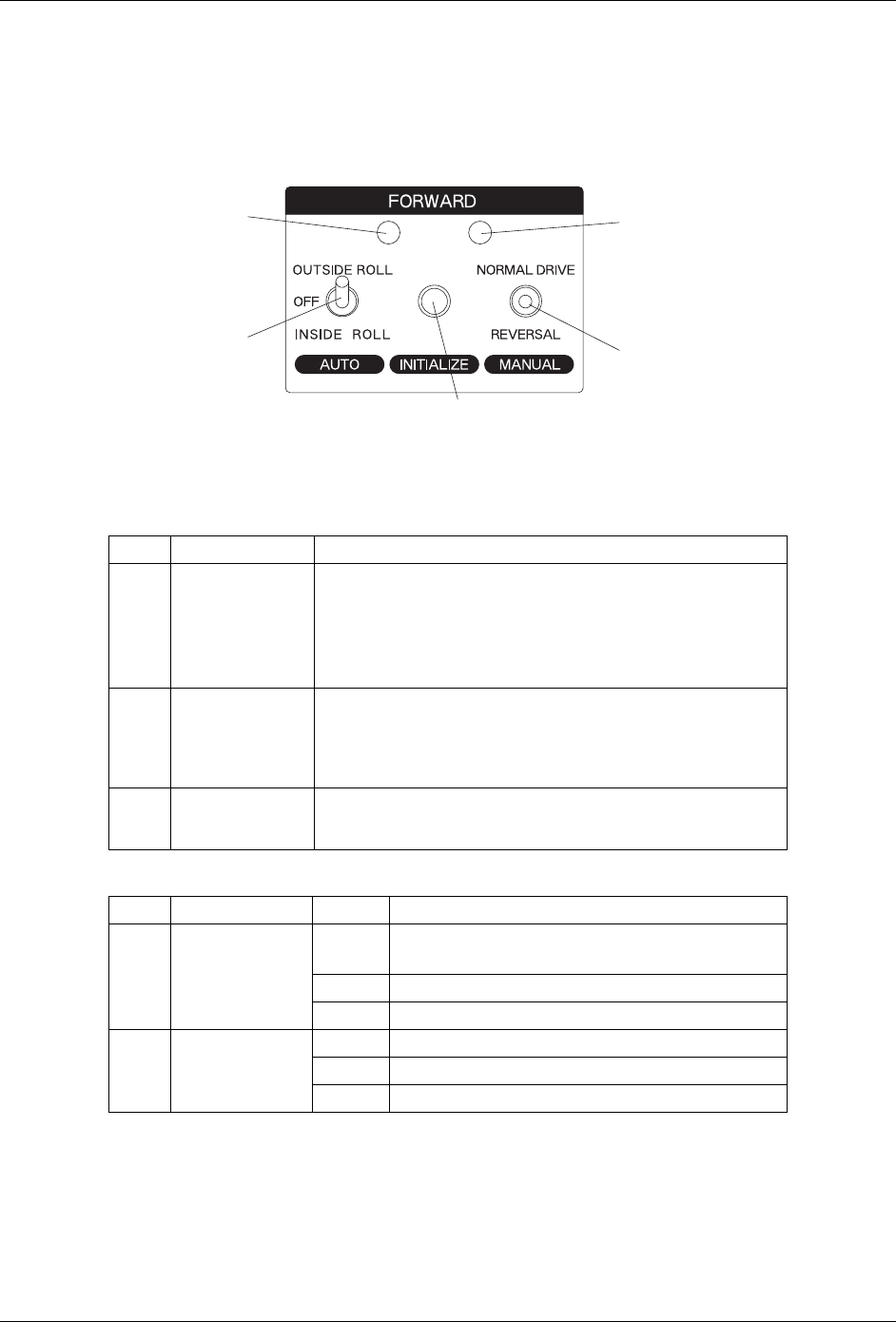

Figure 6. Unwinder Control Panel
2.1.3.1 Switches / Button
No. Part name Function
1 Automatic
Operation
Switch
OUTSIDE ROLL: Used when using paper rolled in the
outward direction.
OFF: Feeding device does not operate.
INSIDE ROLL: Used when using roll paper rolled in the
inward direction.
2 Manual
Operation
Switch
NORMAL DRIVE: Feeding device operates in the
forward direction.
REVERSAL: Feeding device operates in the reverse
direction.
3 Initialize Button
Used to move the position of the tension roller to where
paper can be fed out.
2.1.3.2 Indicators
No. Part name State Function
4 Power Lamp Lit
Power is ON.
Stand-by.
Blinking
During feeding
Off
Power is OFF.
5 Error Lamp Lit
Over-current error in feeding motor.
Blinking
Time-out error.
Off
No error.
