2 Unwinder / Winder Operation
100kg Unwinder / Winder User Guide 9
2.2 Connecting the Power Cable
This section describes the procedure for connecting the power cable.
z DO NOT use a damaged power cable. If the power cable is damaged, contact your local Xerox
Customer Service Representative for a replacement.
Use the following instructions to install the power cable.

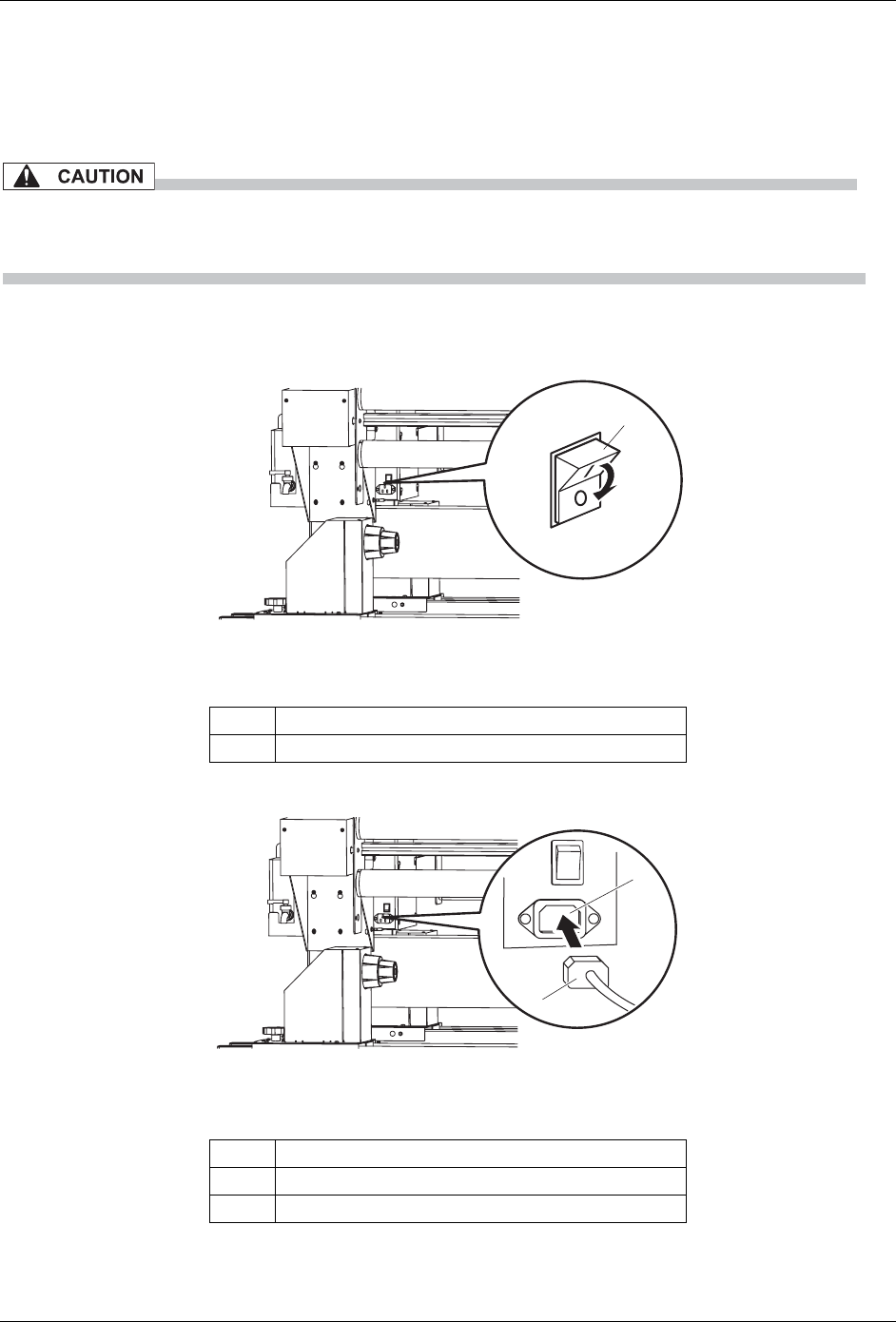

1. Make sure the Unwinder / Winder power switches are set to OFF.
1
Figure 8. Setting Power Switch to OFF
No. Part name
1 Power Switch
2. Plug the AC power cable into the AC inlet on the circuit board box unit.
1
2
Figure 9. Connect Power Cable to Rear of Printer
No. Part name
1 AC inlet
2 Power cable
3. Insert the AC power cable plug to an AC power outlet.
