2 Unwinder / Winder Operation
12 100kg Unwinder / Winder User Guide
4. Place the roll media on top of the rear rail.
1
2

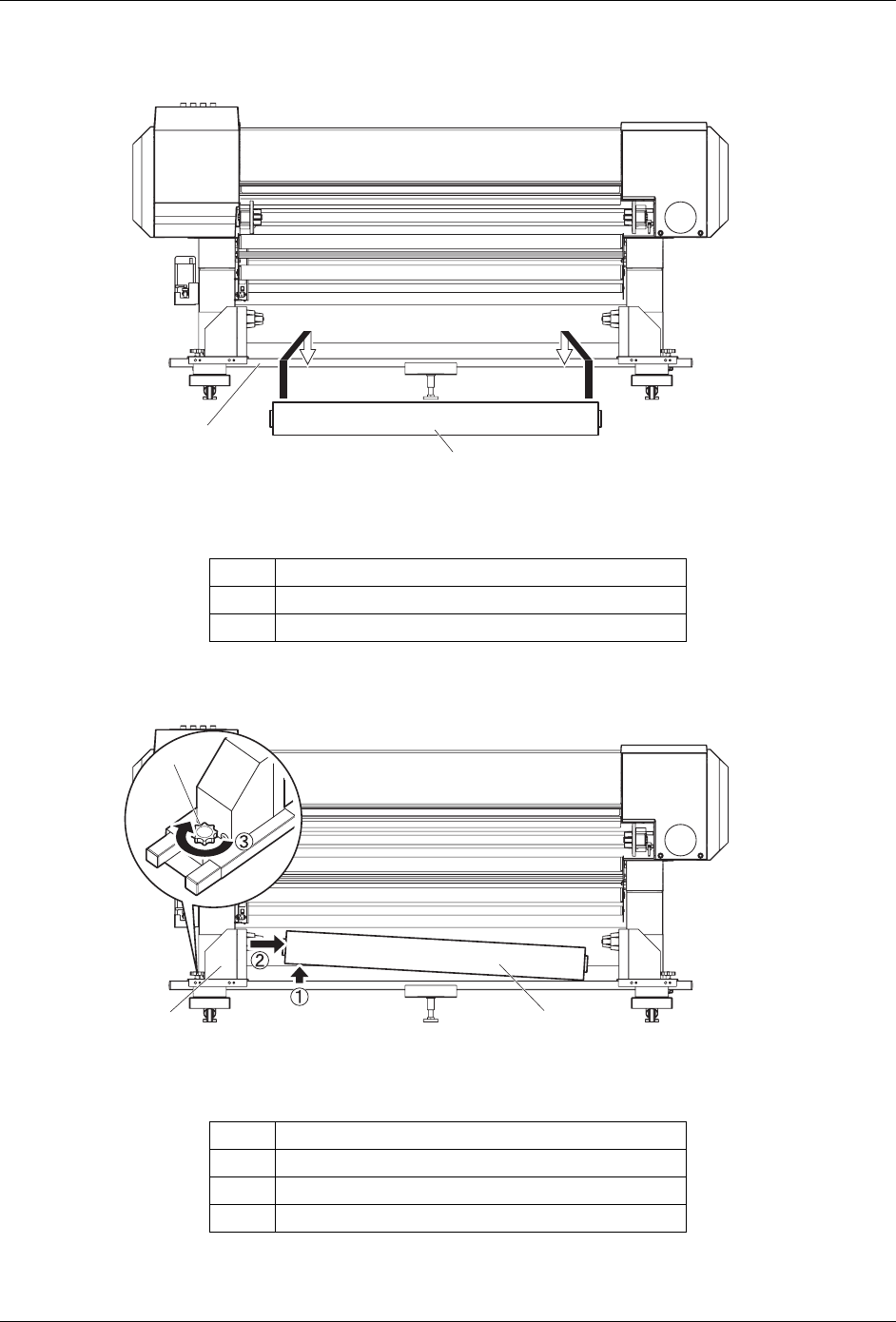

Figure 14. Install Roll Media
No. Part name
1 Rear Rail
2 Roll Media
5. Set the roll media on the Left Unwinder Spindle and tighten the Left Unwinder Spindle Locking
Handle.
1
2
3
Figure 15. Install Roll Media
No. Part name
1 Left Unwinder Spindle
2 Roll Media
3 Left Spindle Locking Handle
