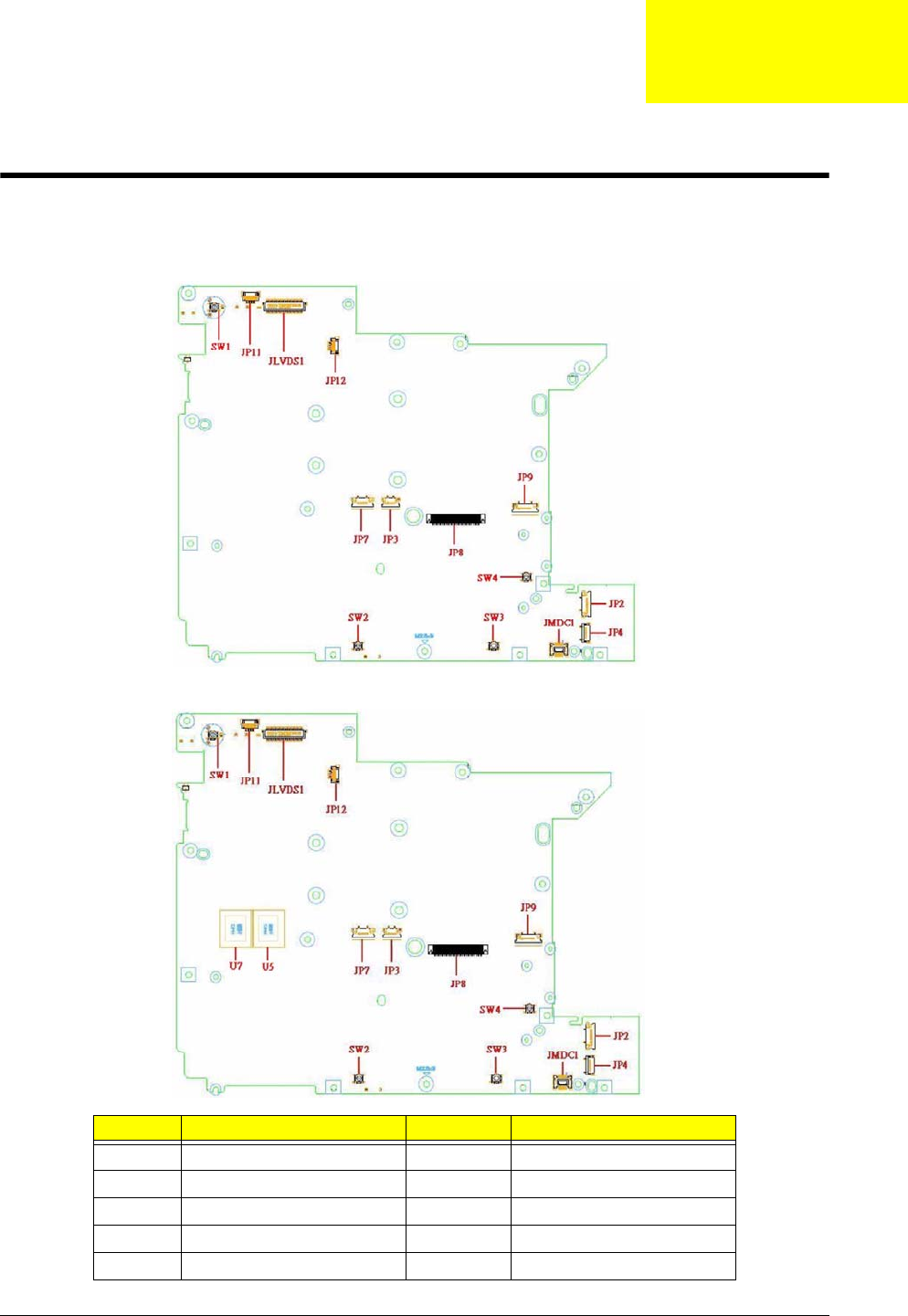

Jumper and Connector Locations
Top View
Item Description Item Description
SW1 ON/OFF Button U7 VRAM
JP11 Camera Connector U5 VRAM
JLVDS1 LCD Connector SW4 Touch Pad Lock Button
JP12 Speaker Connector SW 2 Touch Pad (left) Button
JP4 Bluetooth Connector SW 3 Touch Pad (right) Button
VGA UMA
Discrete
