3.5 R
EWIRING
M
OTHERBOARD
H
EADER
C
ONNECTIONS
There may come a time when you need to reconfigure the pin-out of a motherboard header
connector. Examples could be for your USB header, audio input header, or some other front panel
connector such as the Power Button connector.
Before performing any work, please refer to your motherboard user’s manual or your motherboard
manufacturer's website to confirm the pin-out needed for your connector. We strongly recommend
making a notated drawing before beginning work so that you can recover if your work gets
disturbed.

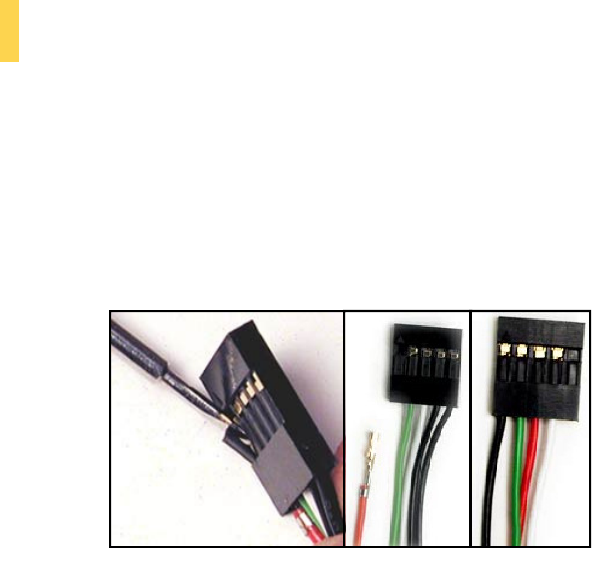

Determine which wires you need to remove in order to rewire your plug to match the USB pin-outs on
your motherboard (refer to your motherboard user’s manual). Working on one connector at a time, use
a very small flathead screwdriver or similar tool to lift up on the black tab located beside the gold posts
(squares). This will allow you to easily slide out the pins from the USB plug.
Working carefully so as not to damage the wires, connectors, or pins, slowly remove the pin from the
connector. Repeat these steps for each wire you need to change.
Working carefully so as not to damage the wires, connectors or pins, slowly insert the pin into the
correct slot of the connector then snap closed the black tab that was lifted in step 1. Repeat these steps
for each wire you need to change.
