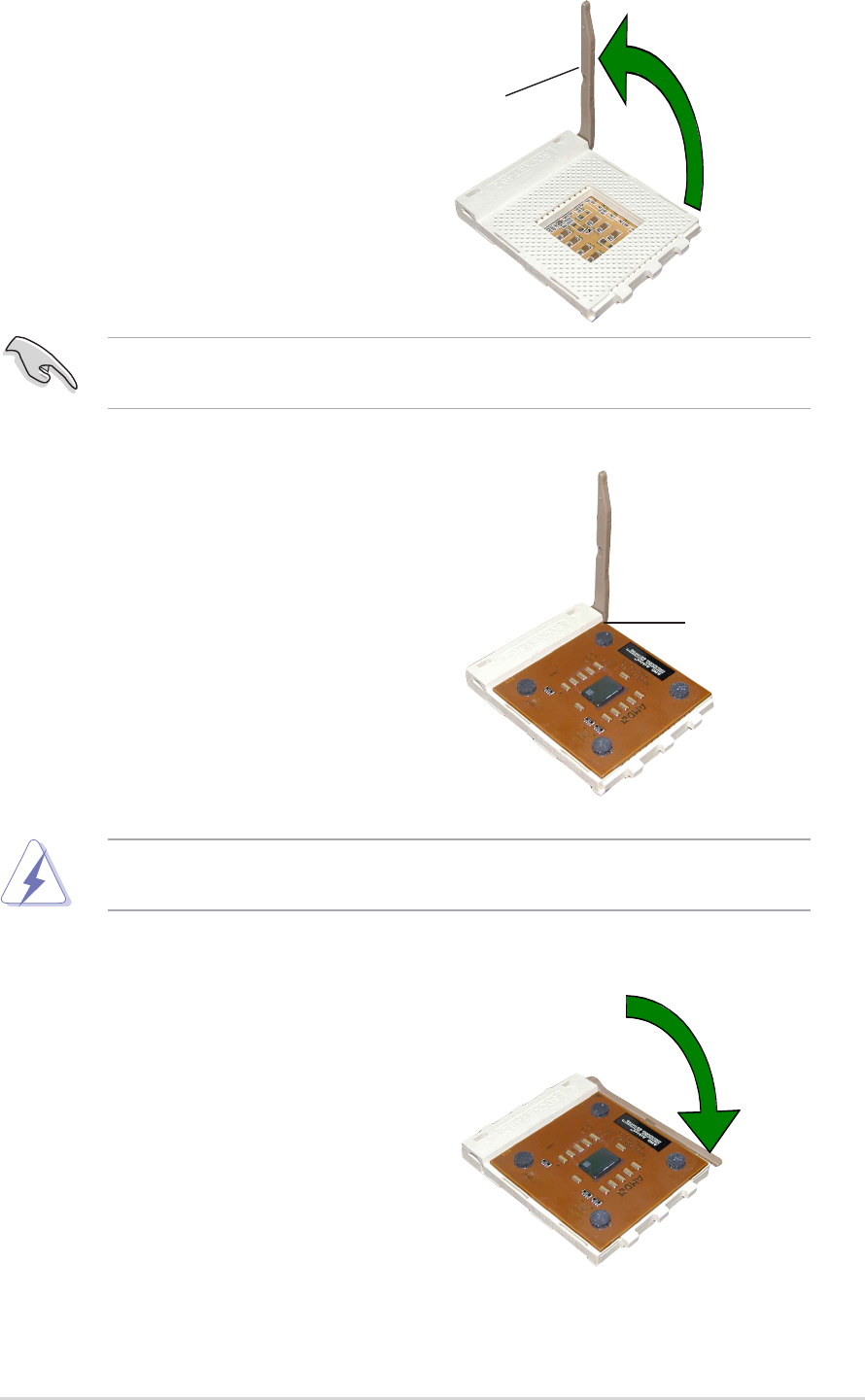

3. Position the CPU above the socket
such that the CPU corner with the
gold triangle matches the base of the
socket lever.
4. Carefully insert the CPU into the
socket until it fits in place.
2. Unlock the socket by pressing the
lever sideways, then lift it up to a 90°-
100° angle.
Make sure that the socket lever is lifted up to 90°-100° angle, otherwise the
CPU does not fit in completely.
The CPU fits only in one correct orientation. DO NOT force the CPU into the
socket to prevent bending the pins and damaging the CPU!
5. When the CPU is in place, push
down the socket lever to secure the
CPU. The lever clicks on the side tab
to indicate that it is locked.
Gold triangle
Socket lever
90°-100° angle
