1.10.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using an FDD cable with a covered Pin 5.
2. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which
can securely store keys, digital certicates, passwords, and data. A TPM
system also helps enhance network security, protects digital identities, and
ensures platform integrity.
The TPM model is purchased separately!
R
M3N78-VM
M3N78-VM

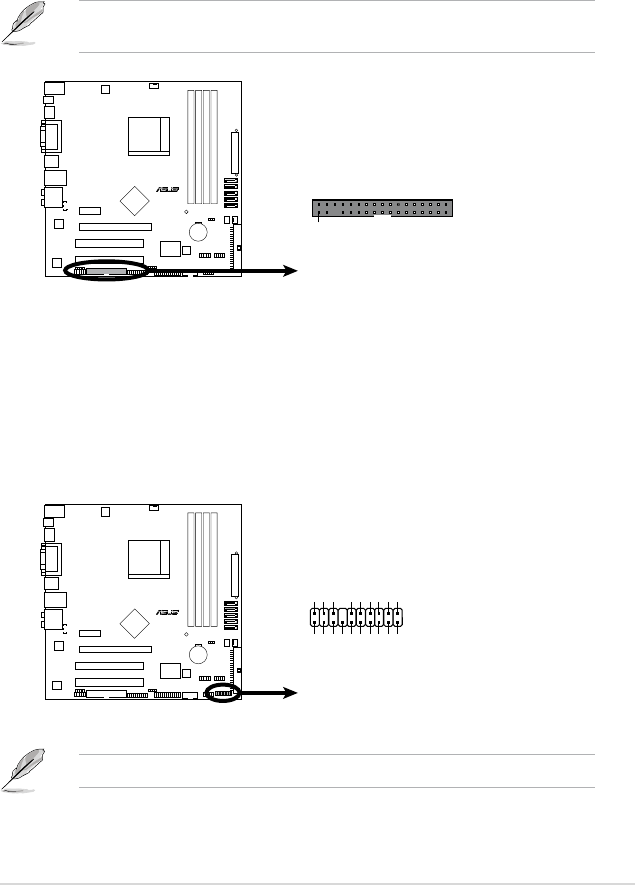

Floppy Disk Drive Connector
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN1
FLOPPY
R
M3N78-VM
M3N78-VM TPM Connector
TPM
S_SMBCLIK_MAIN
S_SMBCLK_MAIN
GND
S_PLTRST#
F_FRAME#
C_PCICLK_TPM
1
GND
F_LAD1
F_LAD2
F_LAD0
+3V
+3V
F_LAD3
GND
F_SERIRQ#
GND
+3VSB
S_PWRDWN#
