22
Chapter 2: Hardware information
2.7 Jumpers
The jumpers on the motherboard allow you to change some feature
settings to suit your customized system configuration.
Before changing any DSW or jumper setting, make sure to read the
jumper descriptions and setting requirements in this section.

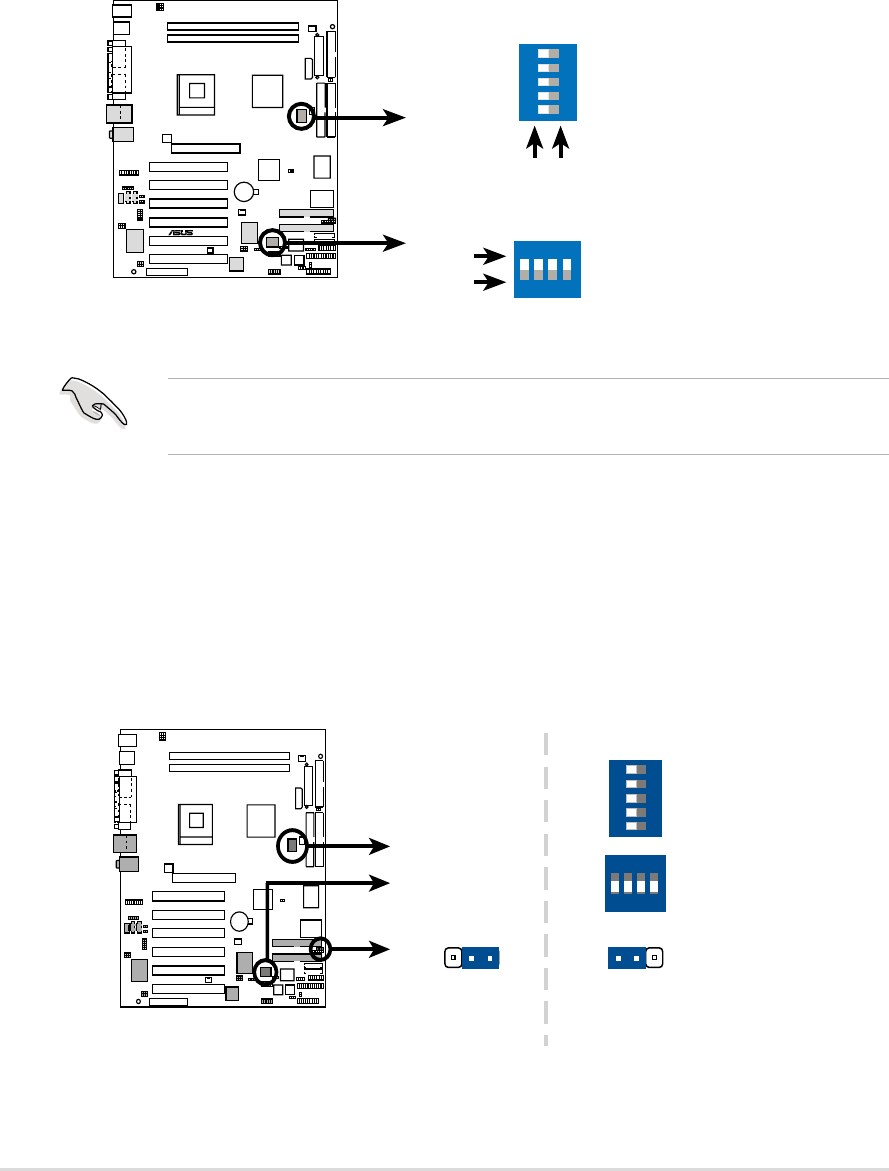

P4T533
®
P4T533 DIP Switches
ON
OFF
DSW
DSW1
ON
OFF
1.Frequency Selection
2.Frequency Selection
3.Frequency Selection
4.Frequency Selection
5.Frequency Selection
1.Frequency Multiple
2.Frequency Multiple
3.Frequency Multiple
4.Frequency Multiple
ON
1234
ON
12345
1. JumperFree
™
Mode (JEN)
This jumper enables or disables the JumperFree
™
mode. The default setting,
[2-3], enables JumperFree
™
mode. JumperFree
™
mode permits processor
settings to be made through the BIOS setup (see 4.4 Advanced Menu).
Motherboard Frequency Settings (DSW Switches)
The motherboard frequency is adjusted through the DSW switches. The
illustration below shows the default position:
P4T533
P4T533 JumperFree™ Mode Setting
JEN
Jumper Free
(Default)
Jumper Mode
DSW1
(All-Off: Default)
ON
12345
DSW
(All-Off: Default)
ON
1234
2312
