2-1 Chapter2:Setup
2.1 Detaching the arm/stand
(for VESA wall mount)
ThedetachablestandofthismonitorisspeciallydesignedforVESAwallmount.

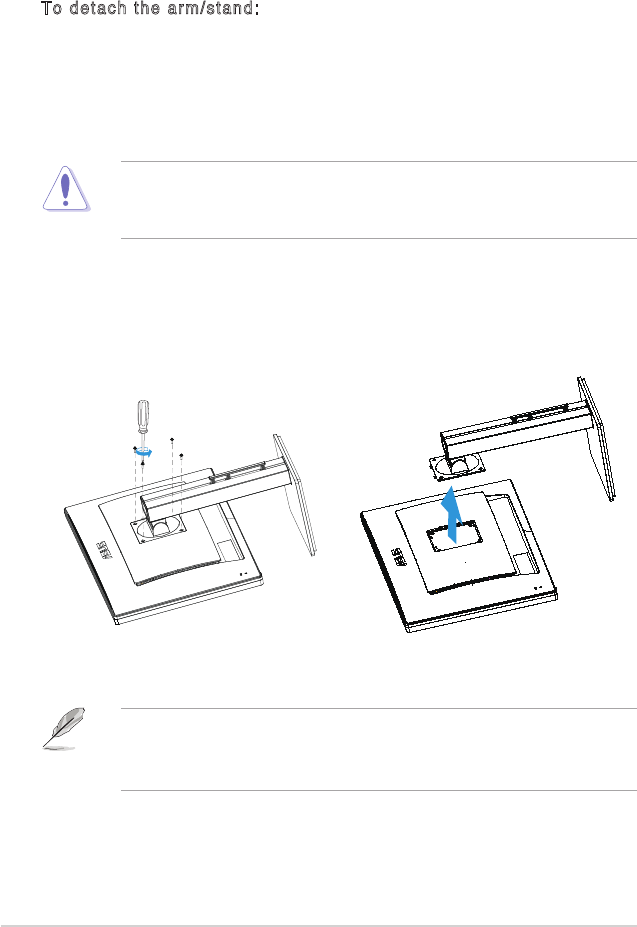

Todetachthearm/stand:
1. Disconnectpowerandsignalcables.Carefullyput the front of the
monitor face down on a clean table.
2. Useascrewdrivertoremovethefourscrewsonthearm(Figure1),
andthendetachthearm/standfromthemonitor(Figure2).
• Werecommendthatyoucoverthetablesurfacewithsoftclothto
preventdamagetothemonitor.
• Holdthestandofthemonitorwhileremovingthescrews.
Figure1 Figure2
• TheVESAwallmountkit(100x100mm)ispurchasedseparately.
• UseonlytheULListedWallMountBracketwithminimumweight/
load28.8kg(Screwsize:4x10mm).
