Installation Set Up
4-2 5975987A BARCODATA 708 260597
Scan adaptation
The scanning can be switch by turning the Horizontal and Vertical
scan connectors and the convergence connectors.
To change the scanning, it is necessary to open the projector top
cover and to rotate the chassis.
For opening the projector's top cover, see Getting access to controls.
WARNING
TURN OFF PROJECTOR AND UNPLUG THE POWER CORD
BEFORE CHANGING THE SCAN DIRECTION.

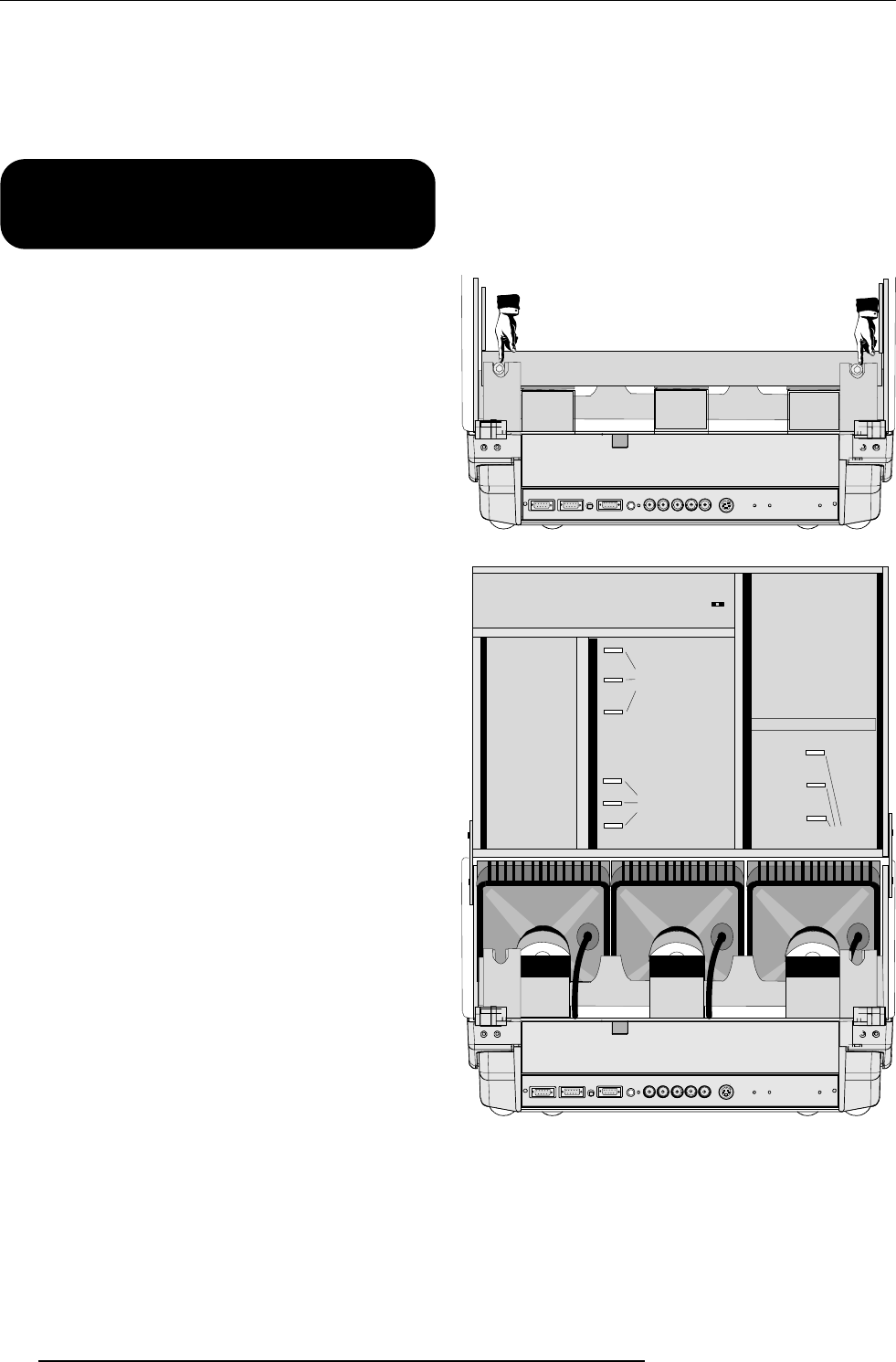

Gaining access to the scan connectors and the convergence con-
nectors.
- Open the top cover (to remove it, see 'Gaining access to controls'.
- To open the chassis, loosen both indicated retaining screws.
Turn the chassis to the front of the projector until it grips in its locks.
COMM PORT
(800 peripherals)
REMOTE
R
G(S) B S VIDEO
S-VIDEO
RS232 OUTRS232 IN
Horizontal scan
connectors
Vertical scan
connectors
Convergence
connectors
COMM PORT
(800 peripherals)
REMO TE
RG(S)BSVIDEO
S-VIDEO
RS232 OUTRS232 IN
