Power Connection
6-1
5975987A BARCODATA 708 260597
6
POWER CONNECTION

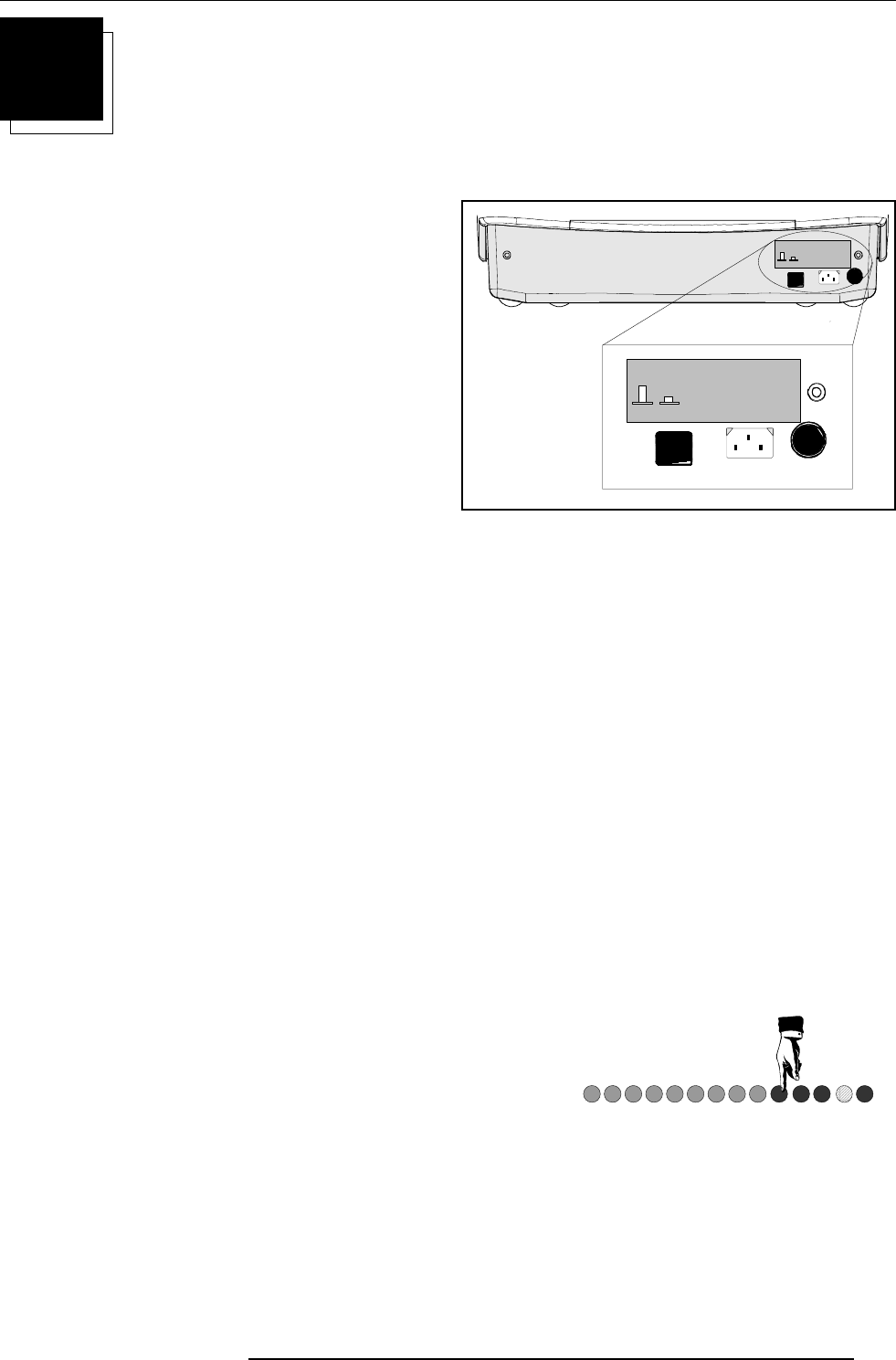

Power (mains) cord connection
Use the supplied power cord to connect your projector to the wall
outlet. Plug the female power connector into the male connector at
the front of the projector.
See installation instructions before
connecting to the supply
V NOM 120 Volt
I MAX 5 AMP
FREQ 60 Hz
OFF
ON
See installation instructions before
connecting to the supply
V NOM 120 Volt
I MAX 5 AMP
FREQ 60 Hz
OFF ON
Fuses
Warning
For continued protection against fire hazard :
- replace with the same type of fuse
- refer replacement to qualified service personnel
Fuse type : 2 x T5A/250V (Barco order number : R314104)
Switching on/off
The projector is switched ON and OFF using the power (mains)
switch ON/OFF.
Pressed : ON
Not pressed : OFF
The projector can start now in the 'operational mode' (image dis-
played) or in the 'stand by mode', depending on the position of the
'power up' dip switch on the controller unit. This DIP switch is set
during installation by a qualified technician. If you want to change this
start up mode, call a qualified technician.
Stand by indication lamp :
no light up : projector in operational mode
red : projector is in stand by.
-9V
SF
HOLD DOWN EHT
STANDBY
-CONV
-17V
+17V
+HTHD
+CONV
+9V
+210V
+30V
COINC
HOLD DOWN HD
Leds on the front plate of the projector
