V.35
↔
RS422 INTERFACE CONVERTER
8
3.2 LEDs
The V.35↔RS-422 Interface Converter is equipped with ten LED indicators located on the front panel.
The row of type above the LEDs indicates the uses of the LEDs for a RS422 DTE/V.35 DCE
configuration. The row of type below the LEDs indicates the uses of the LEDs for a V.35DTE/RS422
DCE configuration. Refer to Figure 3-3. In the card version, the LED’s distinction is on the pull lever.

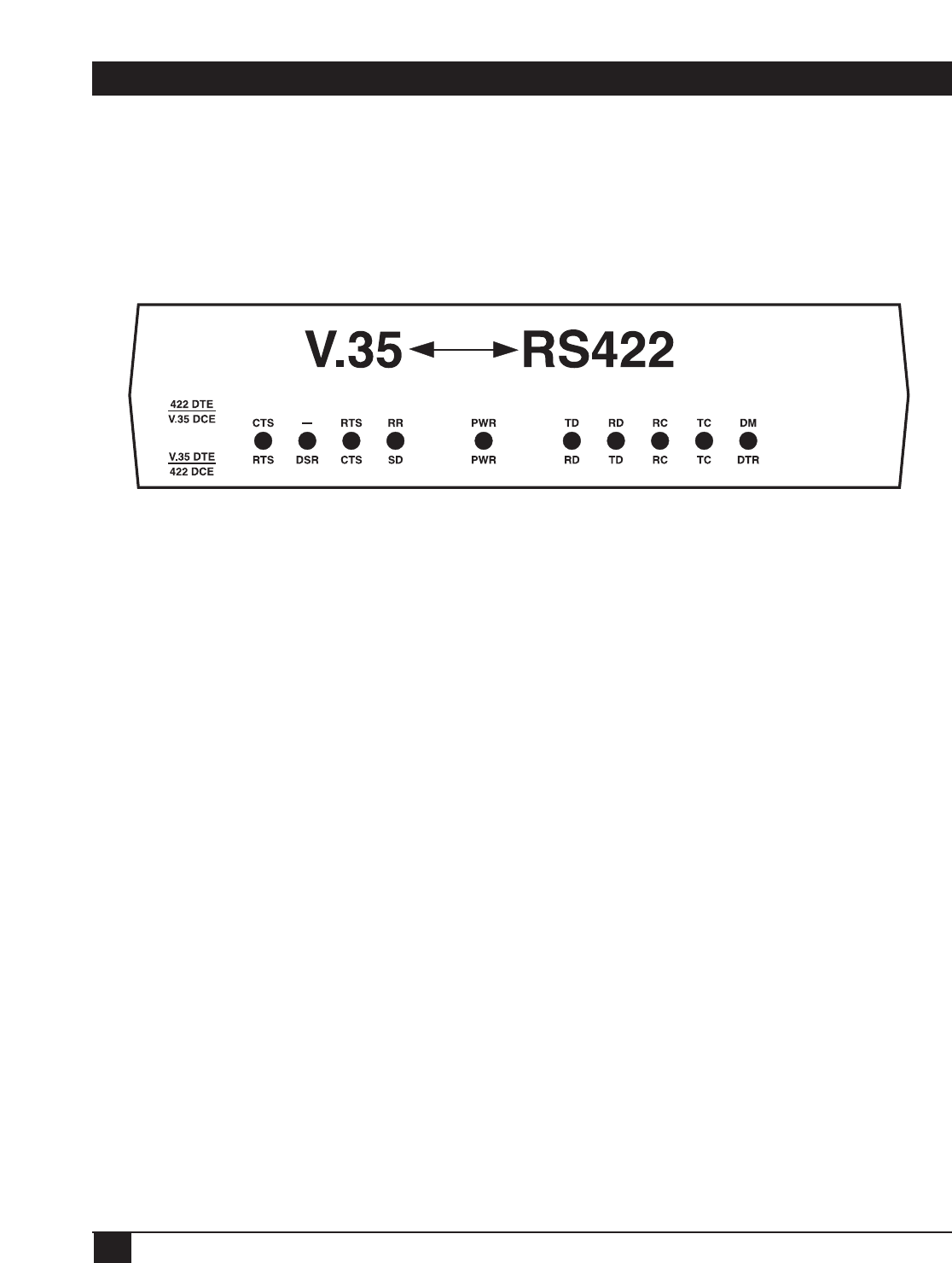

Figure 3-3. Front Panel LEDs.
