Installation Instructions RSM Elite Series Projector Mounts
11
Securing Projector with Interface Bracket
to Model RSM Mount
WARNING: IMPROPER INSTALLATION CAN
LEAD TO PROJECTOR FALLING RESULTING IN
SERIOUS PERSONAL INJURY OR DAMAGE TO
EQUIPMENT. Make certain mounting slots in mount
base slide under thumb screws and that screws are
seated in the back of slots.
1. Verify mounting screws are properly seated in
mounting slots in mount base.

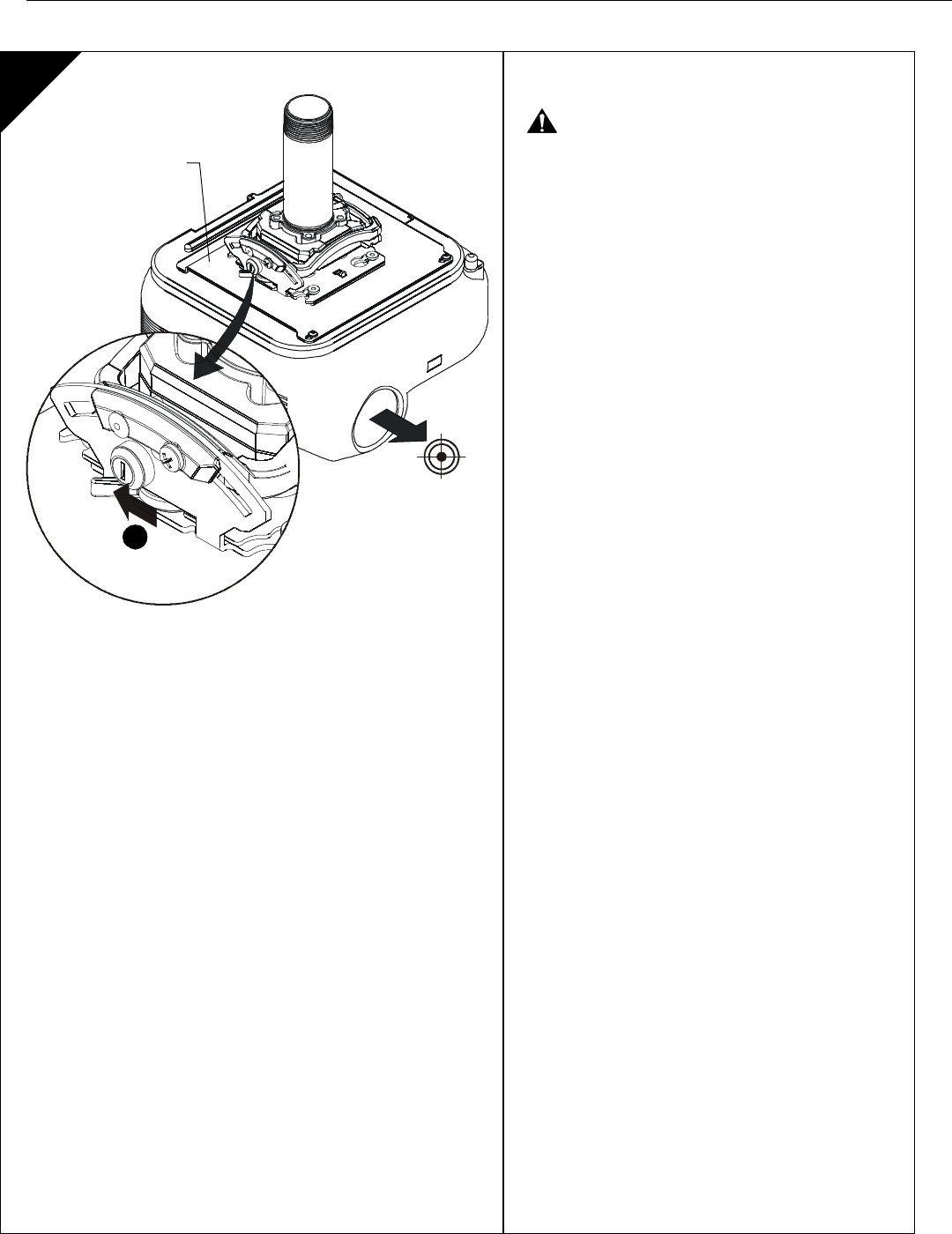

2. Move locking lever to "Locked" position as shown
in figure 2c at left.
3. Insert key into lock and turn to secure projector to
mount.
2c
2
Example Only
(Interface bracket
varies dependent on
projector model)
