1 Introduction

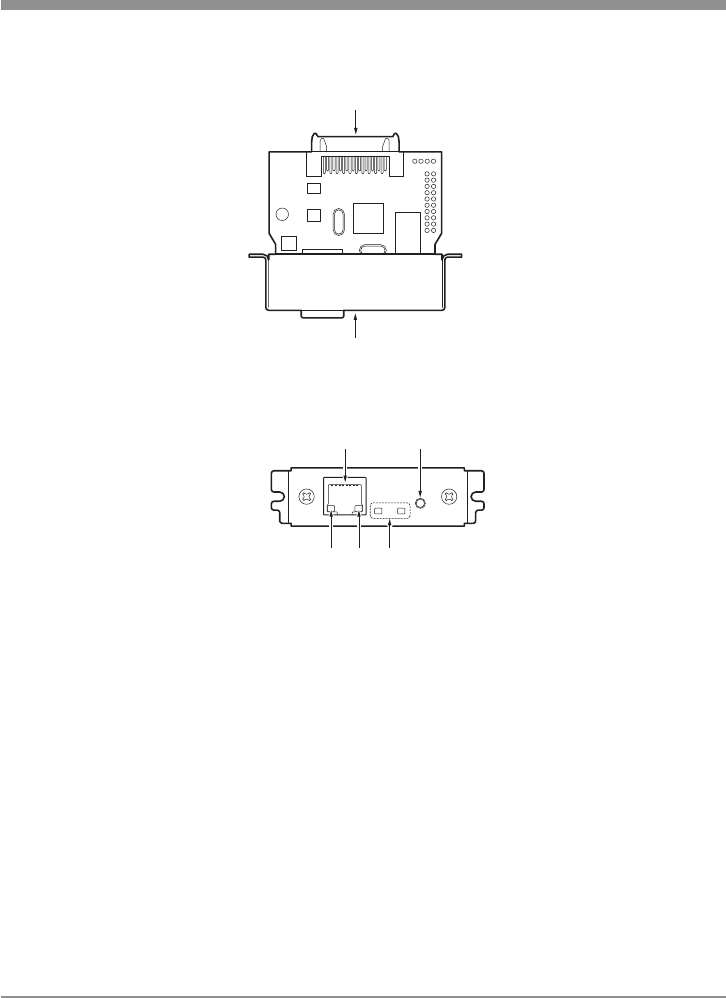

1-2 Part Names and Functions
Printer interface connector
Operation panel
Operation panel
10/100BASE
1 5
2
3
4
1
RJ45 connector (compatible with 10Base-T/100Base-TX)
Connects network cable to device.
2
Network transmission speed indicator
*1
Shows network communication speed with steady / blinking green light.
3
Network status indicator
*1
Shows network connection status (“disconnected,” “receiving data,” etc.) with yellow light.
4
Device status indicator
*1
Shows operational status of the device with combinations of steady and blinking lights (red
and green).
5
Panel button
*2
Used to operate the device.
*1 See 4-2, LED Functions (p.15) for indicator content.
*2 See 4-1, Using the Panel Button (p.14) for panel button operations.
