INSTALLATION
VMA6492 6.4” TFT LCD Monitor
monitor will accept a video signal from any video source with composite video
output. The Infrared (IR) sensor will work directly with a Clarion TTX001 or
VDH9600 using the IR extension cable provided (see Application starting on
page 5 for details).
1. Look over the vehicle for a monitor location. Each vehicle is different and
locations will vary. Make sure the monitor will not interfere with the driver’s
safe operation of the vehicle.

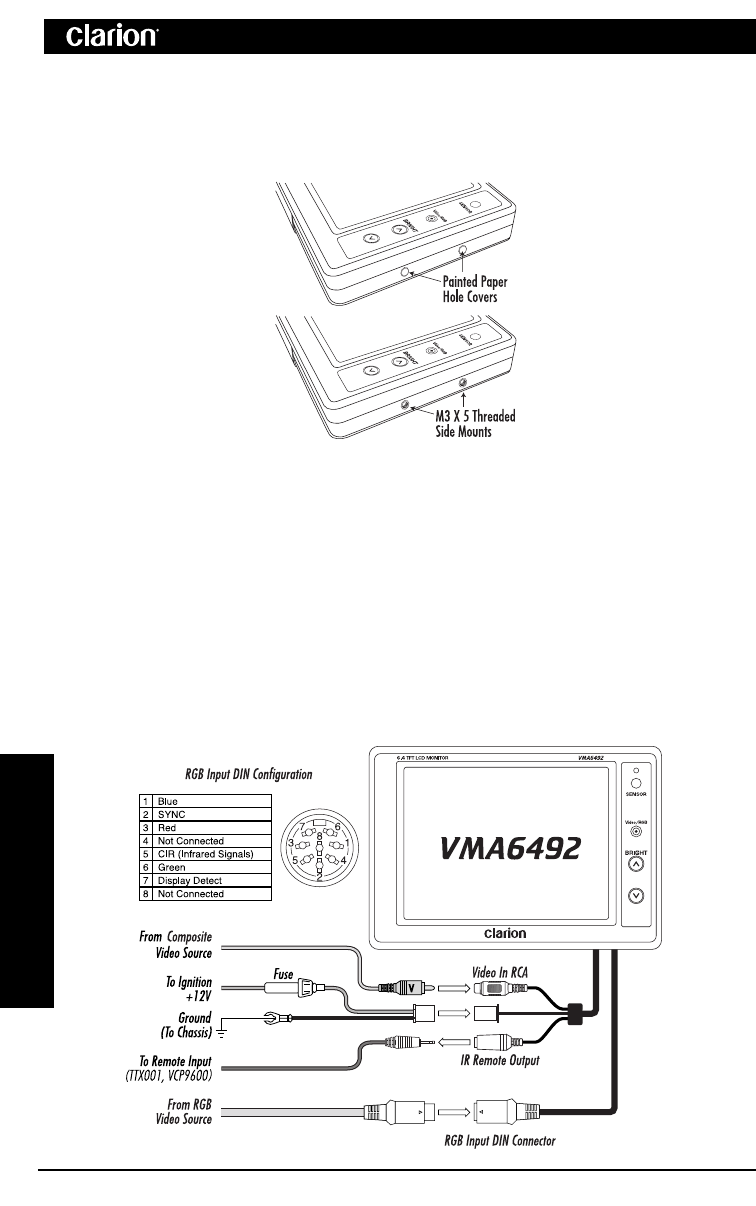

2. Once a location has been determined, run the 3.5 mm IR extension, Video
RCA and Power molex connector into the monitor’s mounting location.
3. Plug each cable into the monitor. Mount the monitor using four (4) M4x8 mm
machine screws (machine screws are provided with the mounting brackets).
4. Run the IR extension, video, and power cables to their respective destinations.
When using the VDH9600 and TTX001 together, make all of your connec-
tions near the VDH9600 (see the figure on page 5 for more details).
