APPLICATIONS
OWNER’S MANUAL
mounting location. Plug each cable into the monitor. Mount the monitor
using four (4) M4x8 mm machine screws (machine screws are provided with
the mounting brackets).
4. Run the IR extension, video RCA, and power wires to the TTX001 location

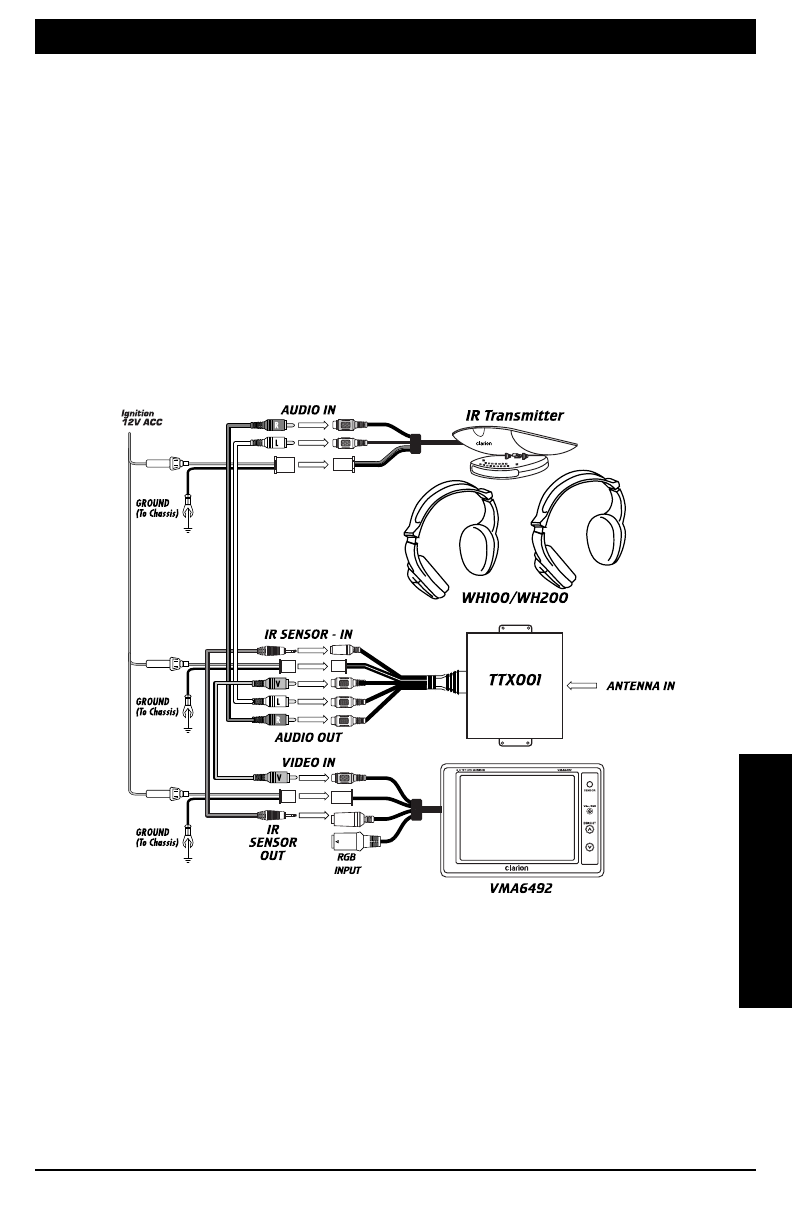

and plug each into the TTX001 tuner (see the figure below for more details).
5. Pick a location to mount the WH100/200 transmitter, plug in the L/R audio
RCAs and power connector. Run the L/R RCAs and power wire to the
TTX001’s location. Mount the IR Transmitter to its mounting location. At
the TTX001, plug the L/R RCAs into the audio outputs.
6. Tie all the ground wires to a good ground point. Connect all the power wires
together and run to a fused accessory wire in the vehicle.
OPERATION:
(With TTX001 and WH100/WH200)
1. Turn the vehicle ignition switch to the accessory (ACC) position. Since the
IR signals from each of the components are linked together, point the RC-300
remote control at the SENSOR located on the front of the VMA6492.
2. Press POWER on the RC-300 remote control to turn the TTX001 TV tuner
ON. The TV picture is now displayed on the monitor.
3. Turn on the IR headphones with its power switch to listen to the audio, adjust
the volume level on the head phones to a comfortable level.
