Back to Contents Page
Fan
Dell™Latitude™131L/
DellVostro™1000ServiceManual
Removing a Fan
Replacing a Fan
Removing a Fan
1. Follow the instructions in Before You Begin.
2. Remove the hinge cover (see Removing the Hinge Cover).
3. Remove the keyboard (see Removing the Keyboard).
4. Remove the display assembly (see Removing the Display Assembly).
5. Remove the palm rest (see Removing the Palm Rest).
6. Remove the two M2.5 x 5-mm screws from the fan.
7. Disconnect the fan connector from the connector on the system board.
Replacing a Fan
1. Connect the fan connector to the connector on the system board.
2. Replace the two M2.5 x 5-mm screws in the fan.
3. Replace the display assembly (see Replacing the Display Assembly).
4. Replace the palm rest (see Replacing the Palm Rest).
CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the
computer.

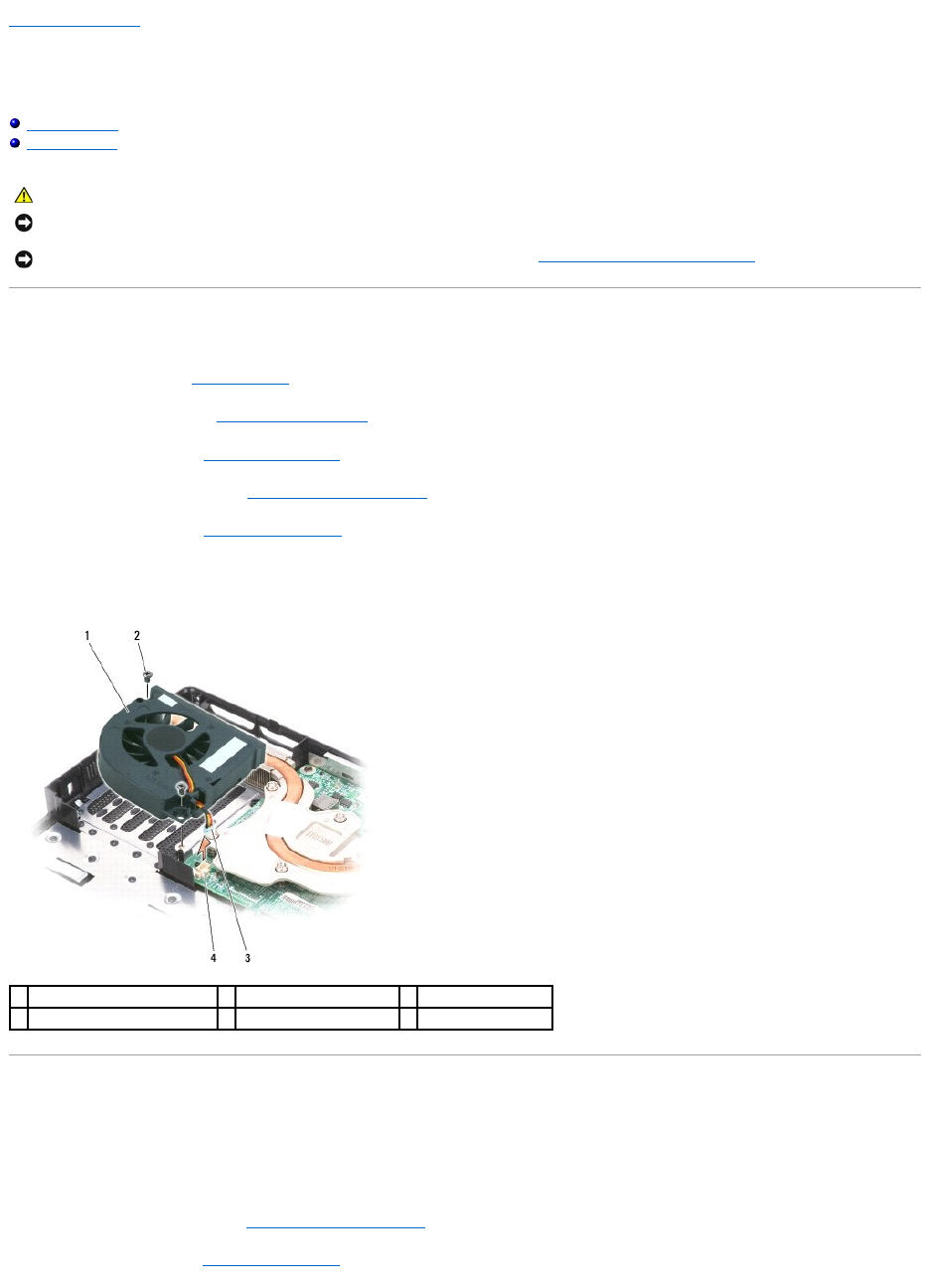

1
fan
2
M2.5 x 5-mm screws (2)
3
fan cable connector
4
fan system board connector
