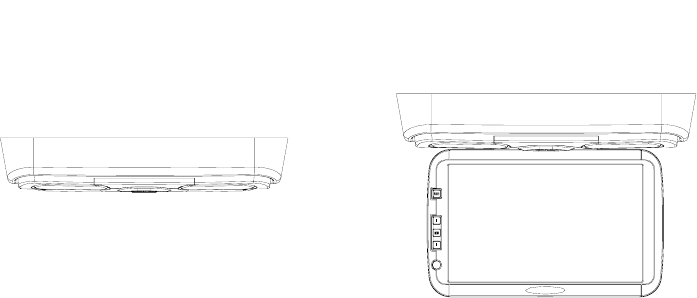

closed position
open position
This unit should be installed by an authorized Directed dealer.
This product is designed to operate with a 12V DC, negative ground battery system.
Disconnect the ground wire from the battery terminal prior to connecting the unit to the electrical
system.
The wiring from some other products or accessories might bear similar color code as this product;
however, they might be of other function. Please refer to the electrical connection diagrams of this
product prior to installing to avoid improper connection.
Use proper connectors and insulation to prevent electrical damage to the unit.
© 2004 Directed Electronics, Inc.
Do not connect the yellow wire and red wire together of this product directly to the +12V. Connect the
red wire of this product to the ACC of the ignition key switch and yellow wire to +12V. Failure to do so
may result in permanent drainage of the battery charge.
Only supplied accessories should be used to avoid damage to the unit during installation.
Ensure that the display monitor is suitably installed at a location, such that it will not obstruct the rear
view mirror and/or the air condition vents.
Do not install this unit at a declining angle exceeding 30 degrees.
Do not install screws over the plane surface, which may affect monitor eject or retract function.
Opening the Overhead Monitor
Press the OPEN button to release the overhead monitor.
