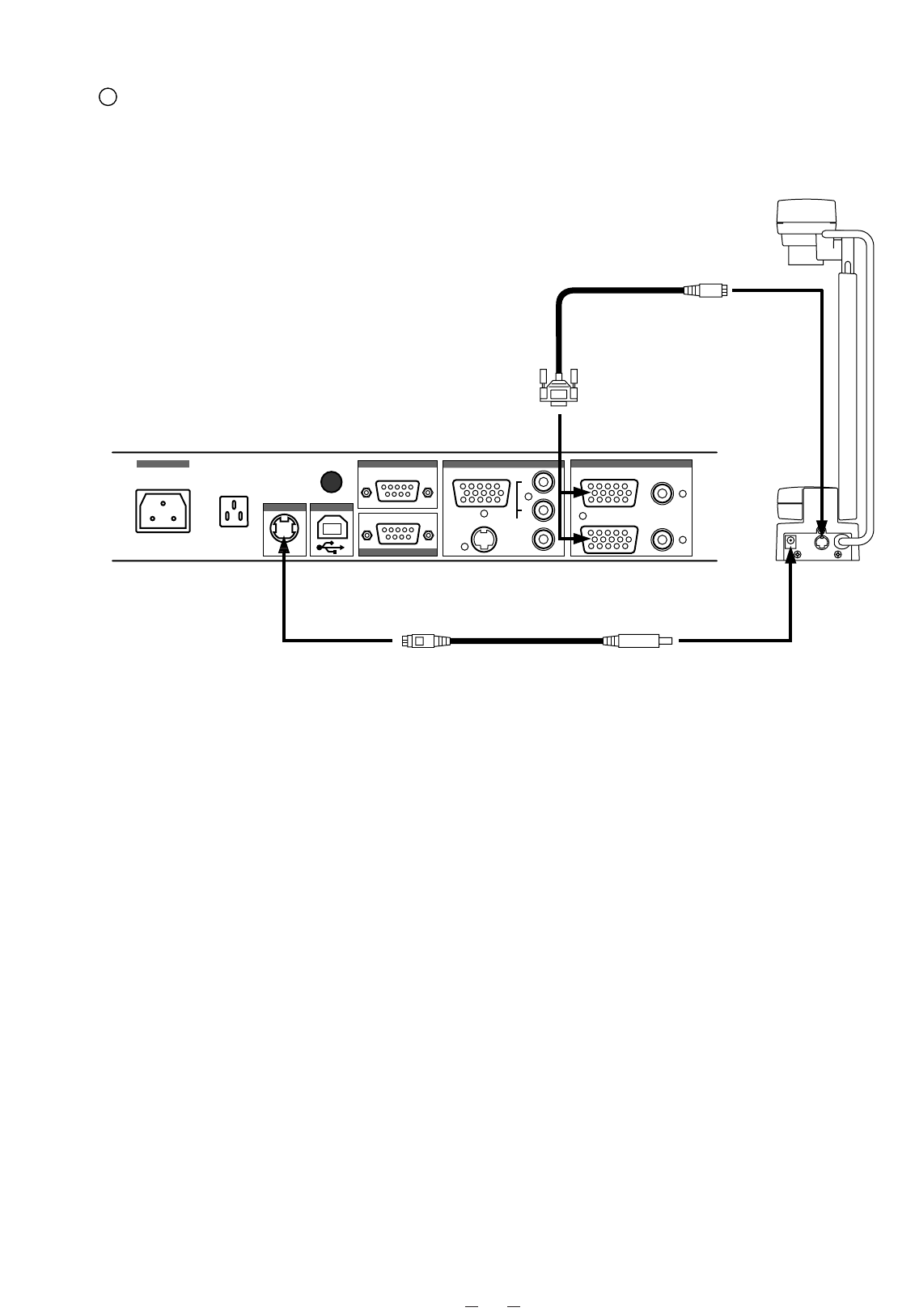

Connecting the Desk-Top Presenter (HD-80XG)
Use the DC OUT socket of the unit to connect ELMO HD-80XG.
To INPUT RGB1
or INPUT RGB2
RGB cable for HD-80XG
use only (supplied)
DC cable (supplied)
DC OUT socket
DC IN
12V
HD-80XG
OUTPUT
MOUSE CONTROL
AC IN
INPUT
RS-232C
OUTPUT
12V 0.9A
RGB OUT
S-VIDEO
R
L
AUDIO
VIDEO
RGB1
RGB2
AUDIO(L/R)1
AUDIO(L/R)2
Note: When using the DC cable (supplied), AC adapter supplied with LM-5011N/HD-80XG is not used.
