DTP T HWP/UWP 232/332 D Transmitters • Installation and Operation 10
DTP T UWP 232 and 332 D Connections
Front Panel
AUTO SW
CONFIG
IR OUT
HDMI IN
AUDIO IN
S
G
HDCP
1
AUDIO IN
VGA IN
Extron
AUTO SW
CONFIG
IR OUT
HDMI IN
AUDIO IN
S
G
HDCP
1
2
HDMI IN
AUDIO IN
Extron
DTP T HWP 232/332 D
Front Panel
DTP T UWP 232/332 D
Front Panel
A
B
D
A
B
C
E
B
AA
C
D

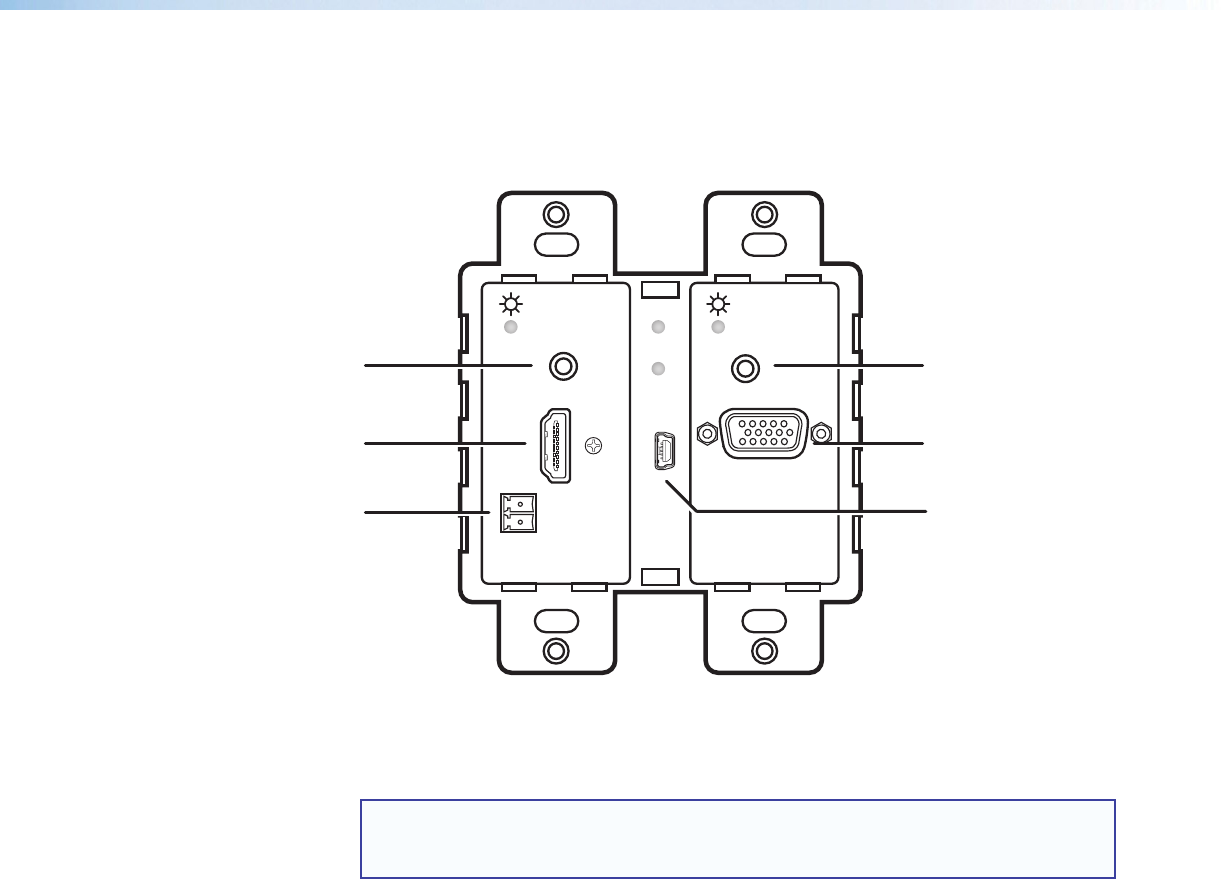

Figure 7. DTP T UWP 232 and 332 D Front Panel Connectors
A Audio input connector — Connect an unbalanced stereo audio source to this 3.5 mm
mini stereo jack (see figure 5 on page 8 for wiring details).
NOTE: The extenders do NOT embed analog audio onto the HDMI signal. This
analog audio signal is transmitted simultaneously with audio embedded within the
HDMI signal.
B HDMI input connector — Connect an HDMI cable between this port and the HDMI
output port of the digital video source.
C VGA input connector — Connect a VGA cable between this port and the output port
of the video source.
D Mini USB port — Connect a male USB mini-B cable to this port for SIS configuration
and firmware updates.
E IR output connector — Connect an IR device to this 2-pole, 3.5 mm captive screw
pass-through connector for IR control (see RS-232 and IR Connector Wiring on page
14 to properly wire the IR connector).
