DTP T HWP/UWP 232/332 D Transmitters • Reference Information 24
Reference
Information
This section includes Decora template dimensions for installation of the DTP T HWP D and
DTP T UWP D family of transmitters.

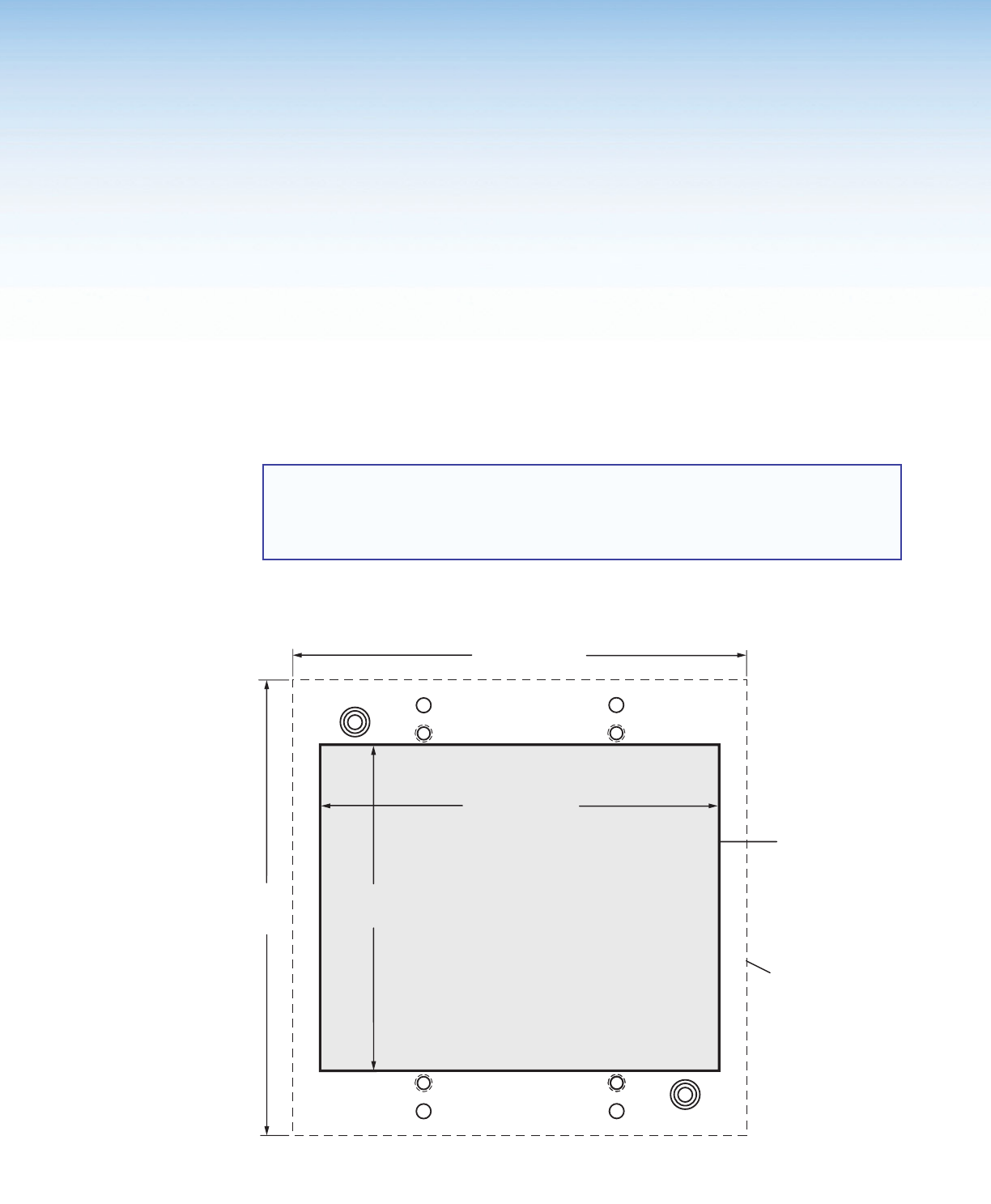

Decora Template Dimensions
To create a template, use the dimensions shown on figure 14.
NOTES:
• The drawing is not full size or to scale. DO NOT scale up or print to use as a
template.
• Full size templates are available online at www.extron.com.
4.26" (10.83 cm)
4.28"
(10.87 cm
)
Recommended
cut-out area
for the installation
surface.
Top Panel
SURFACE
CUT-OUT AREA
FOR WALL MOUNT
3.75" (9.53 cm)
3.06"
(7.78 cm)
Template for the 2-gang
mounting bracket
Figure 15. Decora Template Dimensions
