XG0448 Hardware Guide Chapter 2 Installation
Connecting the Equipment
40
Precautions
Cable length will be as below based on the specification of the optical fiber cable
Use the appropriate cable according to the installation place.

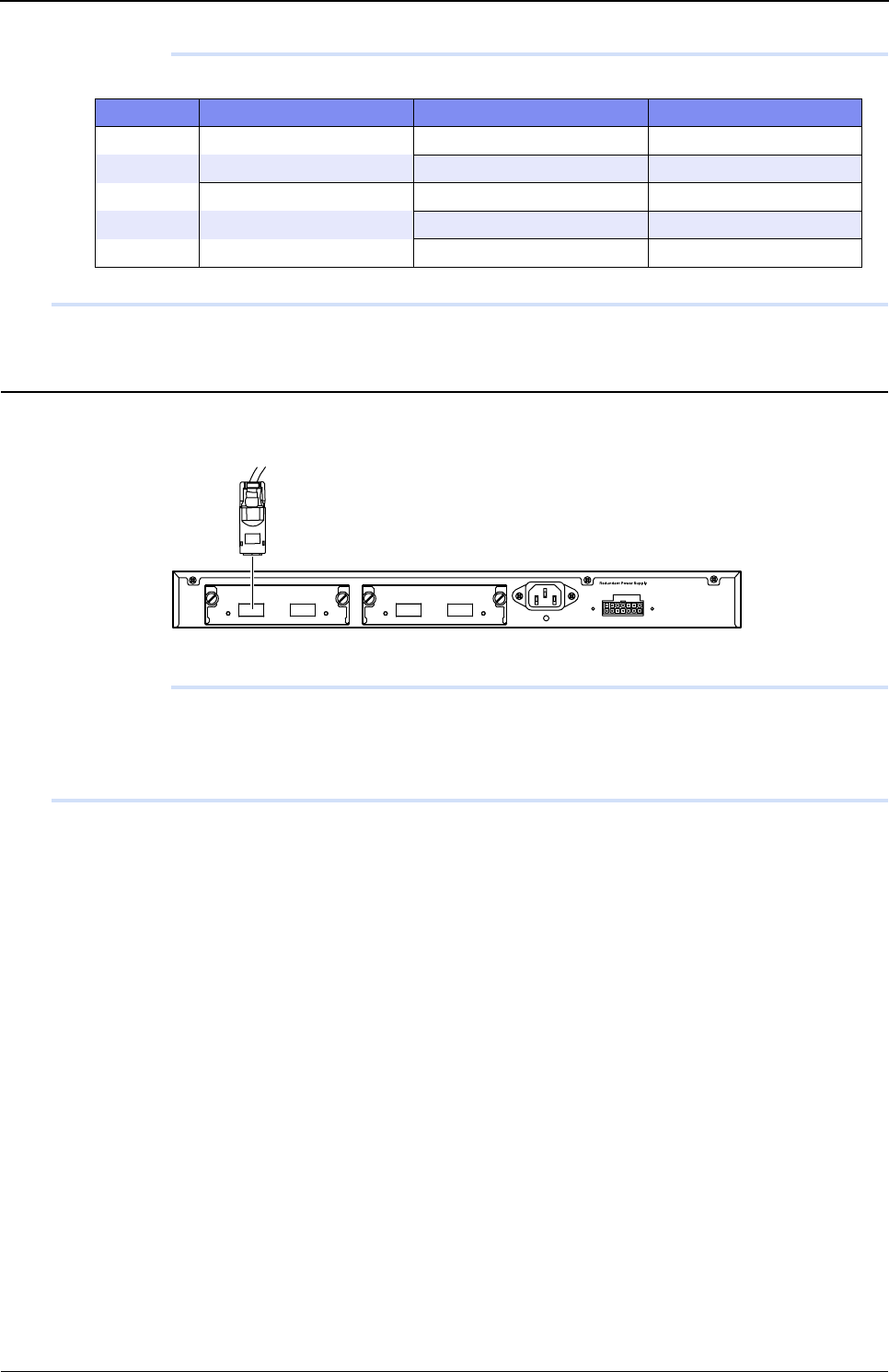

Connecting CX4 Cable
Firmly install CX4 cable to CX4 expansion card port and lock the cable.
Precautions
• Make sure to firmly insert the cable straight from behind.
• When bending the cable, make sure that the diameter of the bent cable does not become somaller than 10cm.
• When pulling out the cable, make sure to pull the pull tab of the cable connector. The cable may disconnect if you
pull the cable itself.
Type Core/Cladding Diameter Minimum Transimission Band Cable Length (m)
MMF 62.5/125
µm 160MHz/km 26
200MHz/km 33
50/125
µm 400MHz/km 66
500MHz/km 82
2000MHz/km 300
CX4cable
