4. Remove the battery (see Battery on page 41).
5. Remove the following components:
a. Switch cover and keyboard (see
Switch cover and keyboard on page 42)
b. Memory module (see
Memory module on page 45)
c. Optical drive (see
Optical drive on page 47)
d. Speakers (see
Speakers on page 49)
e. Palm rest (see
Palm rest on page 50)
f. Hard drive (see
Hard drive on page 52)
g. WLAN module (see
WLAN module on page 55)
h. Display assembly (see
Display assembly on page 59)
i. Top cover (see
Top cover on page 65)
j. Heat sink and fan (see
Heat sink and fan on page 74)

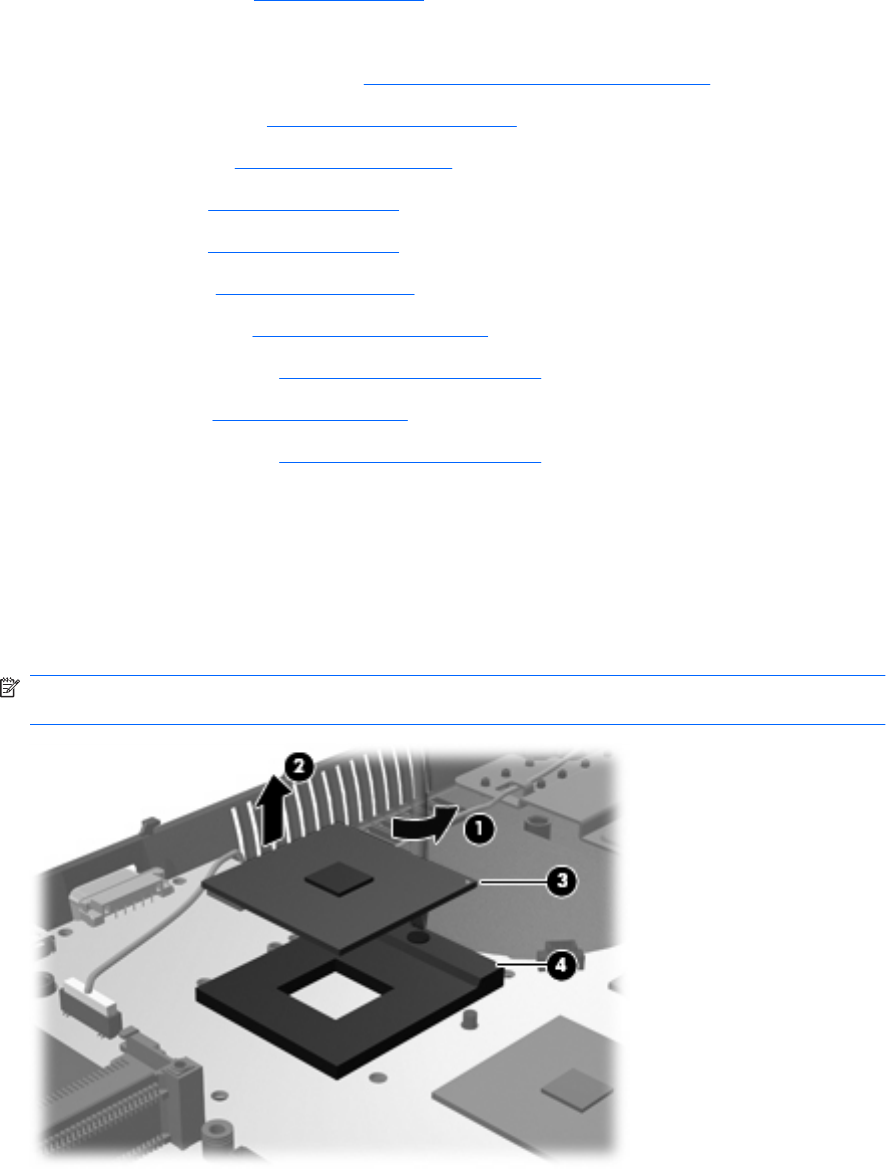

Remove the processor:
1. Position the base enclosure, with the front toward you.
2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
3. Lift the processor (2) straight up and remove it.
NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned
with the triangle (4) embossed on the processor socket.
Reverse this procedure to install the processor.
Component replacement procedures 79
