5–16 Maintenance and Service Guide
Removal and Replacement Procedures
5.9 Optical Drive
1. Prepare the computer for disassembly (Section 5.3).
2. Position the computer with the left side toward you.
3. Remove the Phillips PM2.5×11.0 screw 1 that secures the
optical drive to the computer.
4. Push the rear edge of the optical drive 2 to disconnect the
drive from the system board.
5. Remove the optical drive 3.

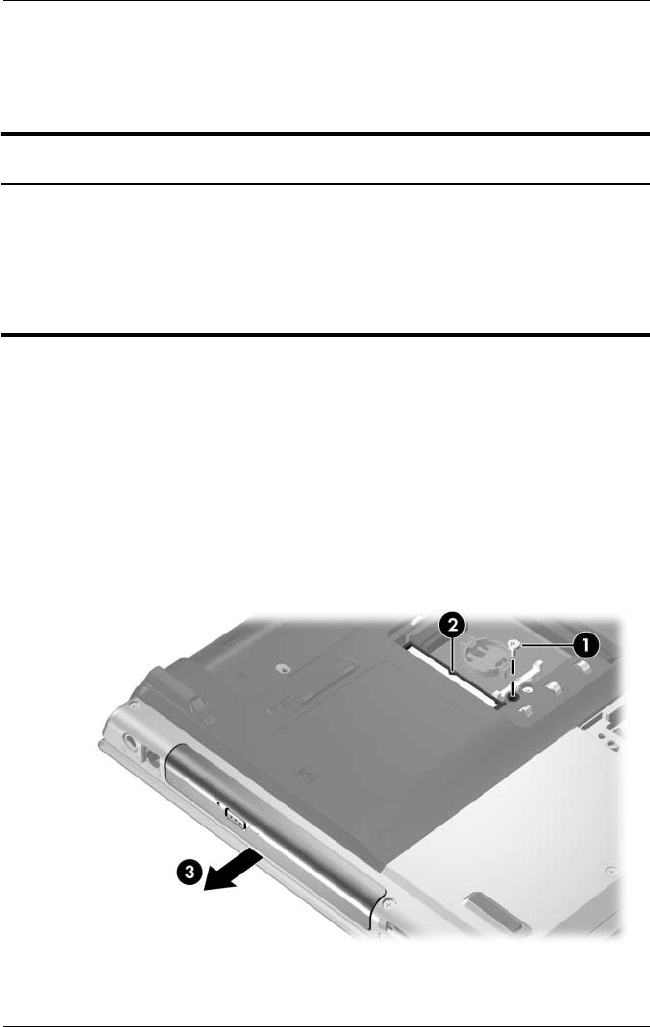

Removing the Optical Drive
Optical Drive Spare Part Number Information
DVD±RW and CD-RW Double Layer Combo Drive with
LightScribe and HLDS
DVD±RW and CD-RW Double Layer Combo Drive with
LightScribe
DVD/CD-RW Double Layer Combo Drive with LightScribe
DVD/CD-RW Combo Drive
417698-001
403806-001
407855-001
407854-001
