10-23
Monitoring and Analyzing Switch Operation
Port Monitoring Features
Monitoring and Analyzing
Switch Operation

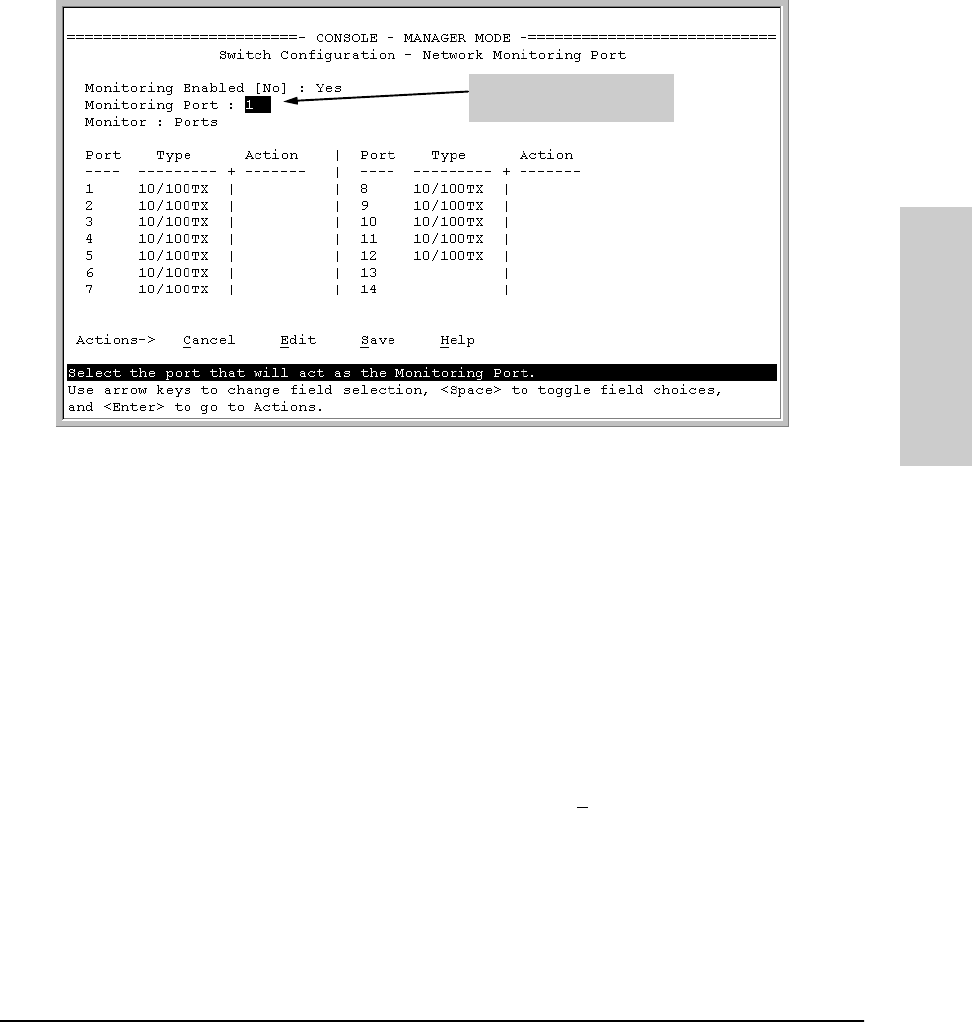

Figure 10-17. How To Select a Monitoring Port
5. Use the Space bar to select the port to use for monitoring, then press the
downarrow key to select the Monitor parameter. (The default setting is
Ports, which you will use if you want to monitor one or more individual
ports on the switch.)
6. Do one of the following:
• To monitor individual ports:
i. Leave the Monitor parameter set to Ports and press the downar-
row key to move the cursor to the Action column for the individ-
ual ports.
ii. Press the Space bar to select Monitor for each port that you want
monitored. (Use the downarrow key to move from one port to the
next in the Action column.)
iii. Press [Enter], then press [S] (for S
ave) to save your changes and
exit from the screen.
• To monitor all ports in a VLAN:
i. Press the Space bar to select VLAN in the Monitor parameter,.
ii. Press the downarrow keyto move to the VLAN parameter (figure
10-18 on page page 10-24).
iii. Press the Space bar again to select the VLAN that you want to
monitor.
Move the cursor to the
Monitoring Port parameter.
