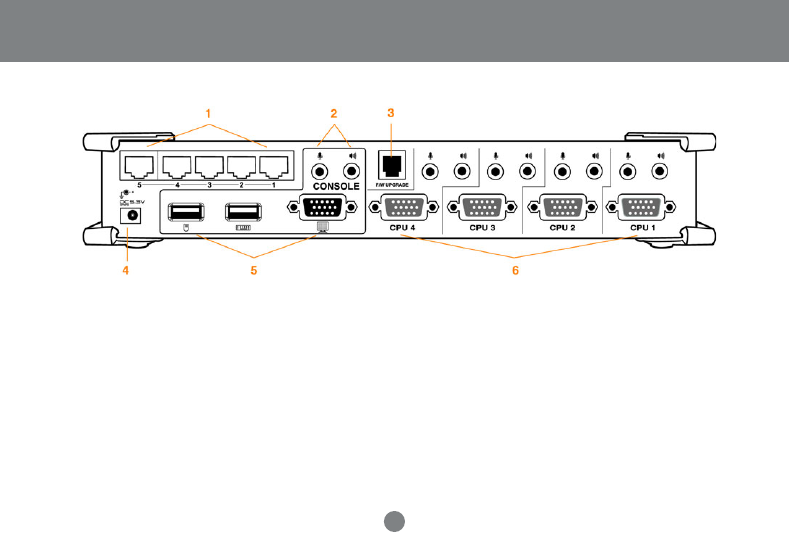

Back View
1. Ethernet port
Connect CAT 5 LAN cables to these ports.
2. Console Audio jack
The cables from your microphone and speakers plug
in here. Each jack is color coded and marked with an
appropriate icon.
3. Firmware upgrade port
The included Firmware Upgrade cable that transfers
the firmware upgrade data from the administrator’s
computer to the KVM plugs into this connector. See
Firmware Upgrade section for more details.
to these ports.
4. Power Jack
The power adapters plugs into this jack.
