• Lights BRIGHT ORANGE to indicate that the
computer attached to its corresponding port is
the one that has the KVM focus (Selected)
• Flashes to indicate that the computer attached to
its corresponding port is being accessed under
Auto Scan mode.
USB LED
• Lights DIM GREEN to indicate that there is a
USB cable connection to the computer attached
to its corresponding port. Does not light if there
is no USB connection to the computer
• Changes to BRIGHT GREEN to indicate that the
computer attached to its corresponding port is
the one that has access to the USB peripherals.

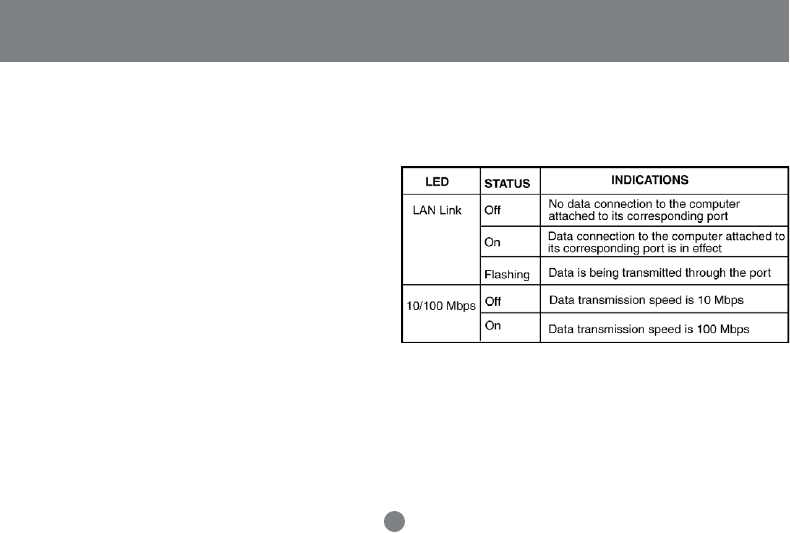

3. Ethernet LEDs
The Ethernet LEDs light to indicate data transmission
status of their corresponding ports on the built-in
Ethernet switch:
4. USB Hub
USB peripherals (printers, scanners, hard drives, etc.)
can plug into these ports
7
Introduction
