PREPARATION
1. Turn off the Multi-Format Monitors main
power and unplug the power cable from
the AC outlet.
2. Unscrew the screws and remove the slot
cover from the slot (on the rear side of the
monitor) in which you are going to install
the card.
3. Insert the Input Cards board (green-
colored) into the slot, fitting the board into
the guide rails on the top and bottom of
the slot.
4. Push the Input Card in so that its front
panel touches the monitors rear panel.
5. Secure the Input Card by replacing the
screws removed in Procedure 2.
INSTALLING THE INPUT
CARD
Optional input cards are necessary to use the functions of this
monitor. Before mounting the monitor or connecting other
equipment to the monitor, be sure to install the input cards.
ATTACHING THE WIDE
MASK
A wide mask is provided with the monitor. This changes the
viewable screen area to the 16:9 aspect ratio.
The wide mask cannot be attached to the monitor after the
monitor is mounted in a rack. Mount the wide mask before
installing the monitor in a rack.
1. Prepare the provided wide mask and 4
screws (for attaching).
2. Attach the wide mask to the monitor.
3. Secure the wide mask with the screws (fix
2 screws each to both right and left side).
When detaching the wide mask, follow this procedure in
reverse.
Slot cover
Fit the board to
the guide rails.
Rear side of the DT-V1900CG
Multi-Format Monitor
Knob

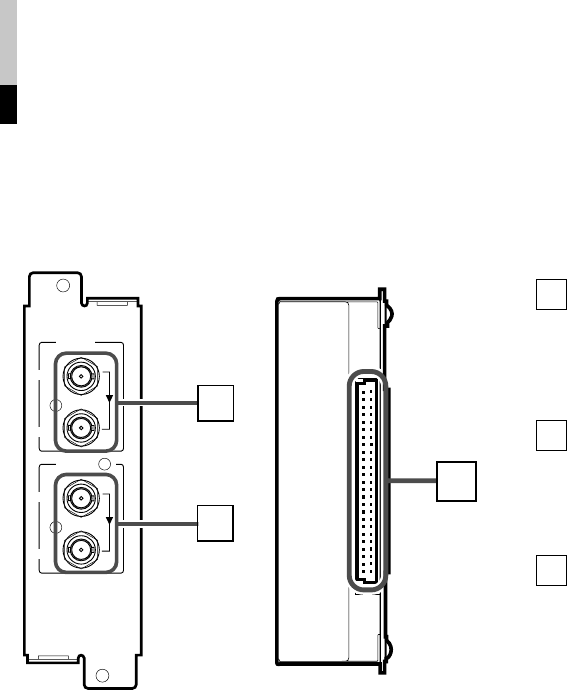

Input card (the illustration shown
is of the IF-C01PNG)
Guide rails
Knob
NOTE :Do not touch the terminal connected to the monitor or
board pattern.
Do not remove slot covers from the monitors slots if
they are not in use.
