1-32 Service Manual
5023-110
Details of the paper transportation system
In the paper transportation process, paper is automatically fed by the pick-up roller and transported to the
registration roller. The registration roller synchronizes with the transfer belt. The registration roller transports
the paper to the transfer roller. During the transfer process, the transfer roller forwards the paper to the fuser
rollers. During the fusing process, the fuser rollers transport the fused paper to the exit roller and the exit
roller pushes the final paper out of the rear cover assembly.

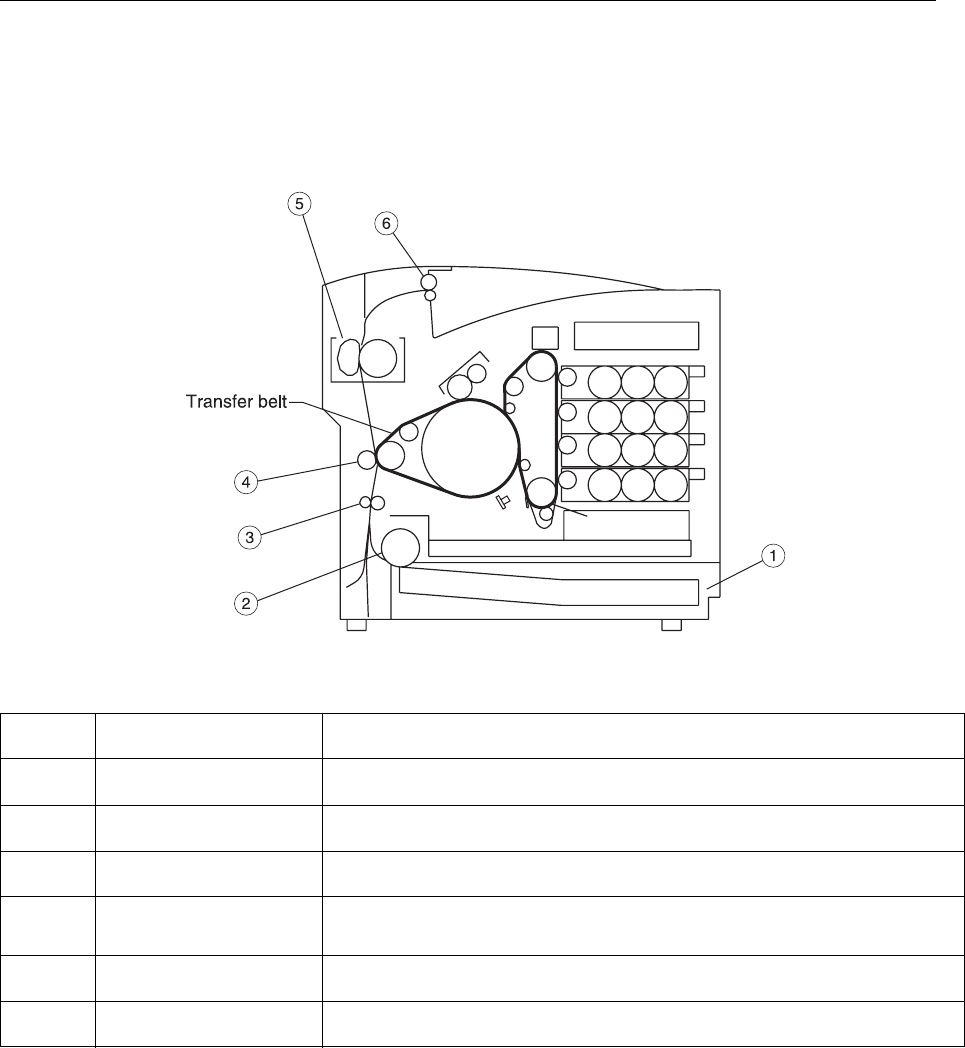

The paper transportation system consists of the following parts:
No. Part Function
1
Paper tray Accommodates paper to be automatically fed through the printer.
2
Pick-up roller Feeds paper one by one, preventing multi-feed.
3
Registration roller Transports and synchronizes paper with the transfer belt.
4
Transfer roller Works in conjunction with the transfer belt to transfer the image to paper and
to transport the paper to the fuser.
5
Fuser unit Utilizes a heat roller to fuse the toner image to the paper.
6
Paper exit roller Exits the fused paper from the printer.
